Wenzhou Gangyuan Electronics Co.,Ltd.

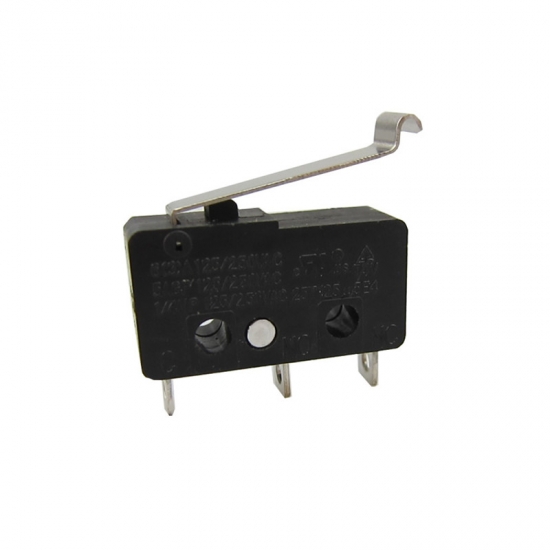

High Quality 3 pin micro switch 5a 250vac,Micro switch is widely used in mouse, security products, door bells, car electronics, telecommunications, military products, Testing equipment, Household appliances, medical equipment, BAS, electric tools, radio equipment, etc.
Brand:
GangyuanItem NO.:
G15-10SM05-40Order(MOQ):
1000pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
7 Working Days after paymentHigh Quality 3 pin micro switch 5a 250vac
Product Description:
Micro switch is widely used in mouse, security products, door bells, car electronics, telecommunications, military products, Testing equipment, Household appliances, medical equipment, BAS, electric tools, radio equipment, etc.
Specification:
Drawing:
Application
Item No.
G15-10SM05-40
Dimension
20mmx6.6mm
Contact resistance
≤100mΩ
Dielectric Withstanding Voltage
AC 1500V 1Minute
Operating temperature
-25℃+125℃
Operating force
40±20gf
Life expectancy
10,000Cycles
Rating
10A 125V/250VAC
Lever length
16.5mm-24mm
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
Sub-miniature in size, the G15 Series snap-action switch is UL certified.
micro switch manufacturers of china，surface mount micro switch
G15-06SM03-30-15: On Off, T85/125, 6A 125v Electronic Micro Switch.
G15-06: 3 Position, 6A, 125/250VAC, SPDT type mini micro switch.
G15-10SM04: 10A 125/250v AC, T125 5e4, on off micro switch.
G15-10SM08: 10A 250V, high level, 10,000cycles mini micro switch.
Micro switch is widely used in mouse, security products, door bells, car electronics, telecommunications, military products, Testing equipment, Household appliances, medical equipment, BAS, electric tools, radio equipment, etc.
GANGYUAN 5e4, 25t125, 3 Pin Light Weight Micro Switch with lever
