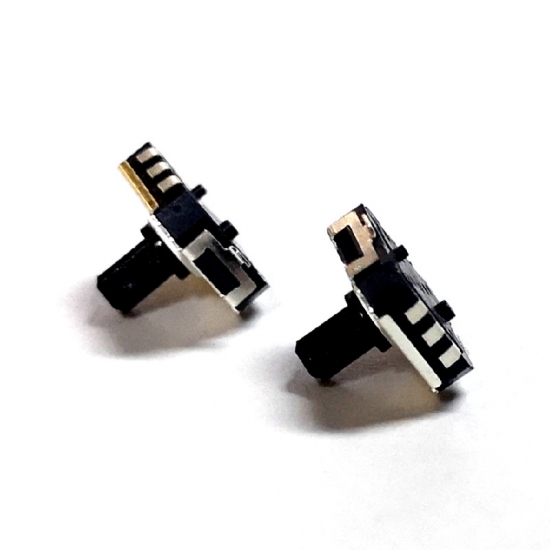

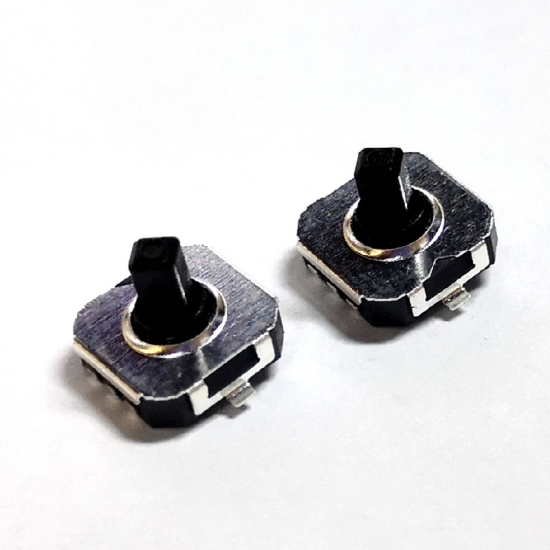

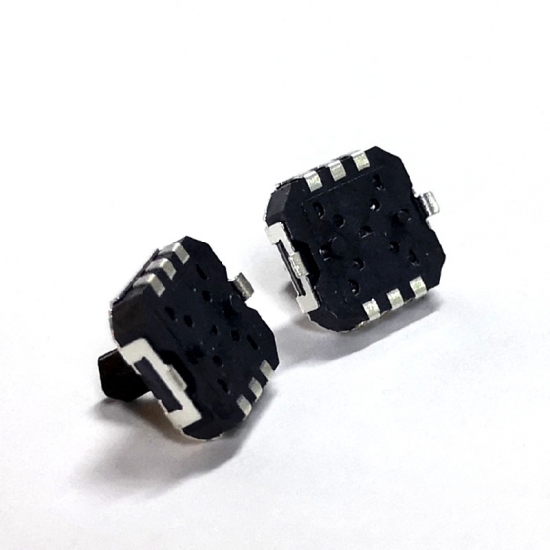

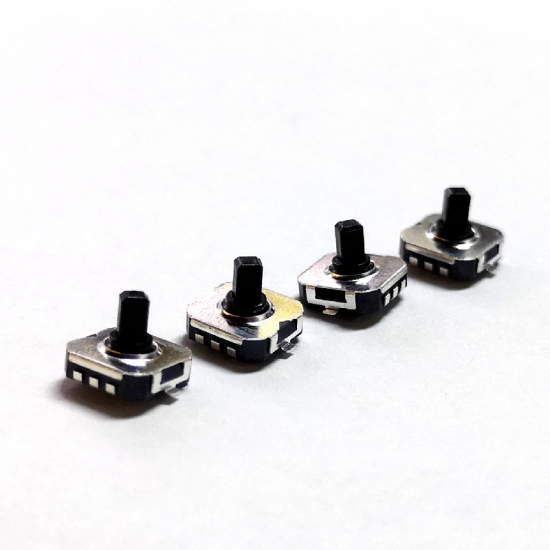

Five Direction SMT Switch

This tact switch has 5 directions. The operating force in each direction is different. Center：250±70gf，4-directional:160±50gf

Brand:
Gangyuan
Item NO.:
KAN0741A-0601C1-95
Order(MOQ):
500pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
Black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
14 working days for payment

Outline (mm)
7.40mm x 7.40mm
Mounting Type
Surface Mount
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

2 Positioning column five directions tact switch

Basic Information

Rating: DC 12V 50mA（Max） DC 1V 10μA （Min）
Operating Temperature Range: -30℃～80℃

Storage Temperature Range: -40℃～90℃

Operating Force: Center：250±70gf, 4-directional:160±50gf

Return Force: 20gf .Min

Height: 6±0.2mm

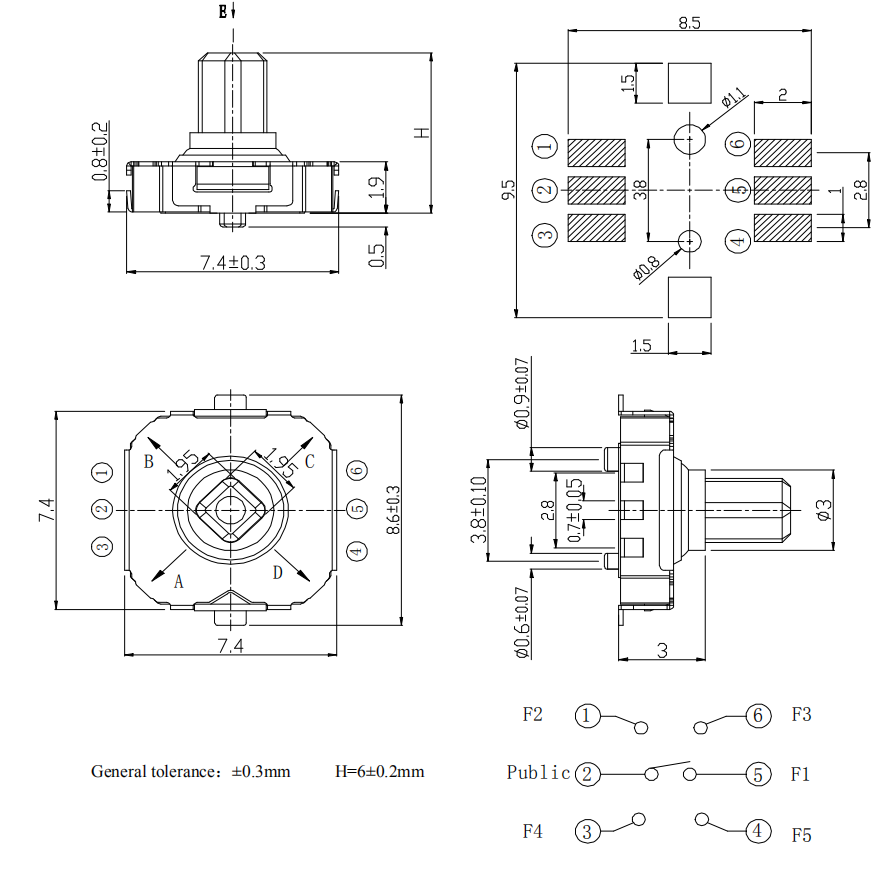

Switch Dimension

What does a tactile switch mean ?

A tactile switch is a switch whose operation is perceptible by touch. Tactile Switch Functions. Click Response. The click response of the button lets the user feel the response of the operation from the switch.

Our advantage

1. The factory has more than 20 years of experience in the field of switch manufacturing.

2. Variety of categories. More than 2000 models.

3. Good quality. Using raw materials imported from Japan and South Korea.

More than 85% of product automated manufacturing coverage.

4. Excellent R&D team, clients design requests are welcome.

5. Two thousands invention patents and 47 utility model patents.

6. Assembly process in 100,000 grade dust-free workshop.
7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

8. After-sales service team. Global radiation multiple service outlets.

Application

Tact switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

FAQ

Q1: why choose us?
A1: Low MOQ, high quality, good service, plenty of stock .

Q2: Are all the products on the shelves in stock?
A2: some products out stock ,you can contanct us to check stock situation.

Q3: How long is your delivery time?
A: In stock, we can arrange delivery within 24 hours. The delivery time without stock is generally in 15 days.

Q4: What's the Payment method?
A: We support various payment way: Alibaba trade assurance order, T/T, Western union, Paypal, etc.

Q4: What's the shipping way?
A: We will provide a good suggestion for shipping the goods according to the order size and the delivery address . For a small order , We will suggest to ship it by DHL,UPS or the other cheap express at door to door so that you can get the products fast and safety. For a big order, we can ship it by sea, by air , or ship the cargo according to client's requests.
