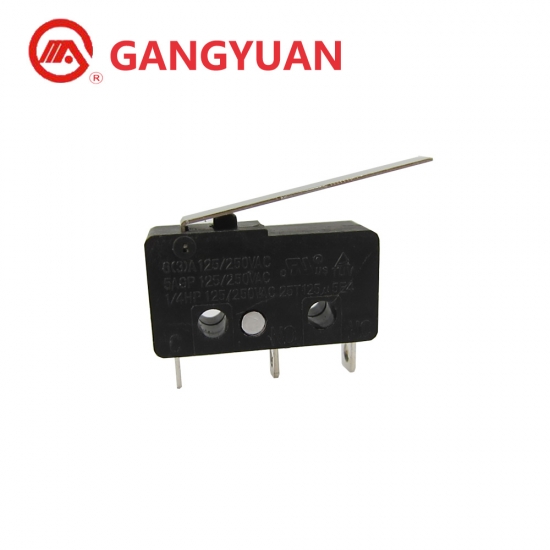

10A SPDT Replace 125/250V ac defond rotary switches Micro Switch
Brand:
GangyuanItem NO.:
G15-10SM03-30Order(MOQ):
50Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
7 Working Days after payment
10A SPDT Replace 125/250V ac defond rotary switches Micro Switch
Basic Information
| Product name | micro switch |
| Operating temperature | -25℃~85℃ |
| Operating Relative Humidity | ≤85℃ |
| Dielectric withstanding Voltage | 1500V AC 1Min |
| Voltage Rating | 125/250V AC |
| Current Rating | 10A |
| Operation force | 40±20gf |
| Soldering Temerature | 260±5℃.5S |
| Circuit Code |
SPDT |
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Micro Switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
