cost effective tact switches

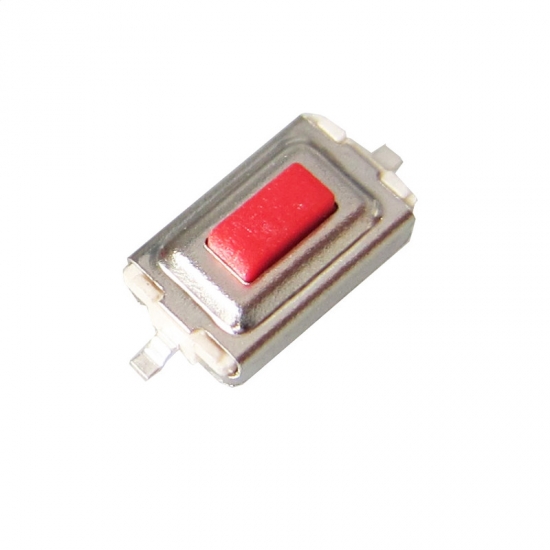

3*6mm 12V 2 pin smd push button tactile switch cost effective tact switches

Brand:
Gangyuan
Item NO.:
KAN0441L
Order(MOQ):
50 pcs
Payment:
T/T
Product Origin:
zhejiang/shenzhen
Color:
red and silver
Shipping Port:
ningbo or shenzhen
Lead Time：
3 Working Days after payment

Outline (mm)
6.00mm x 4.00mm
Mounting Type
Surface Mount
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

3*6mm 12V 2 pin smd push button tactile switch cost effective tact switches

Basic Information

Brand	GANGYUAN (GYE)
Item No.	KAN0441L
Product height	2.5mm
Operating force	160gf/260gf±50gf
Rating	12V DC 50mA
Life cycles	30,000/50,000 cycles
Sulfuration resistance	40±2℃, 72h
Heat resistance	80±2℃, 96h

Dimension

tact switch smd 4.3 mm stem.jpg

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact switches

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
