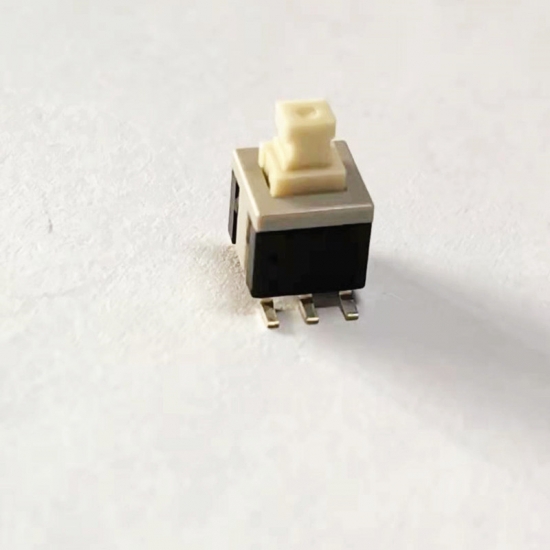

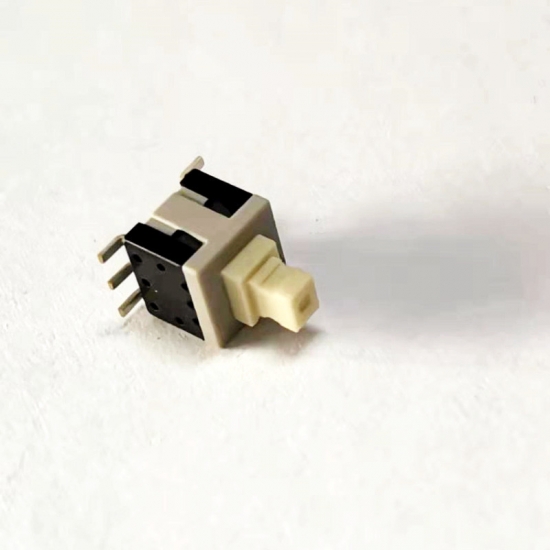

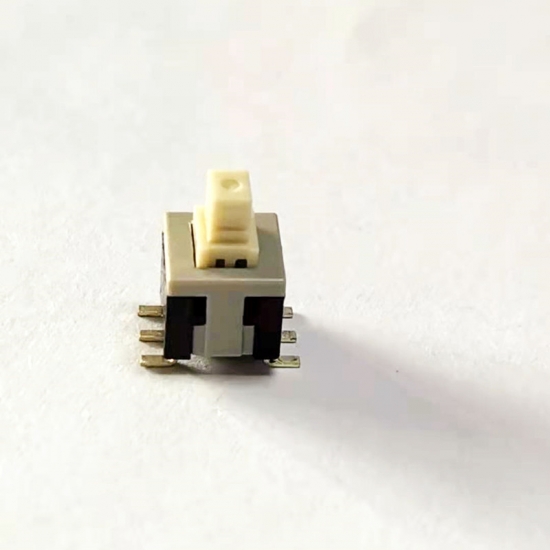

Gangyuan new product self-locking switch 30v
Brand:
GangyuanItem NO.:
PB22M06371-04Order(MOQ):
100Payment:
EXWProduct Origin:
Zhejiang，ChinaColor:
BlackShipping Port:
Ningbo/shenzhenLead Time：

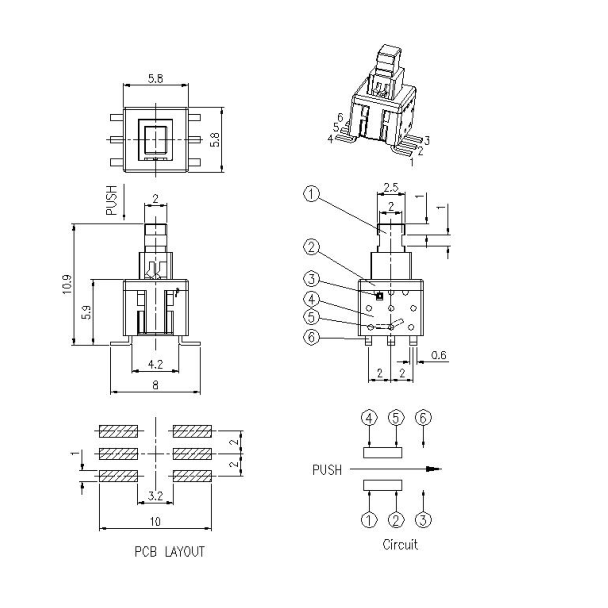

7-14 working days for paymentOutline (mm)
5.80mm x 5.80mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating
No IP RatingConversion on-off switch with lock
Product introduction
|
Ratings |
DC 30V，0.1A |
|
Operating Temperature Range |
-40℃～85℃ |
|
Contact Resistance |
≤100mΩ |
|
Insulation Resistance |
≥100MΩ |
|
Operating Force |
200±80 gf |
What are the differences between self-locking button switches and non-locking button switches？
The self-locking switch generally refers to the switch with its own mechanical locking function. When pressed, the button will not jump up completely after releasing it. It is in the locked state. At this time, press it again by hand, and the mechanical structure unlocking button will automatically jump up. It's called a self-locking switch. Early TVs and monitors that were directly powered off were such switches.
The non-lock switch is pressed by hand, and the button bounces back immediately after releasing the hand. Circuits are needed to realize the locking function. For example, the switches on induction cookers, range hoods, and displays are non-lock switches.

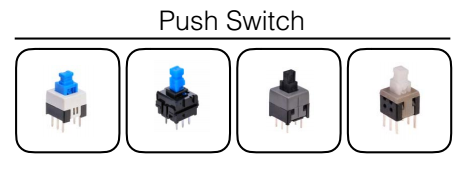

Related product pictures
FAQ
1.Why choose Gangyuan?
Answer: We promise: All our products have quality assurance, and have high quality and competitive prices. We have the best after-sales service to ensure you receive the goods satisfactorily.
2. Are your products 100% new?
Answer: Yes. We guarantee 100% brand new
3. Do you accept sample orders? What is your minimum order quantity?
Answer: Trial order or sample order can be accepted, but the cost is different from bulk purchase
4. What shipping methods can you provide?
Answer: Express/air/sea according to customer requirements.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
