Our slide switches are available in multiple configurations and sizes. Our slide switches come surface mounted or through hole mounted and are available in different angles to give the customer ease of use.
Brand:
GangyuanItem NO.:
SS12F23G5Order(MOQ):
1000Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
Silver and blackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 Working Days For PaymentOutline (mm)
13.20mm x 8.70mmMounting Type
Right Anglelllumination
Non-llluminatedIP Rating

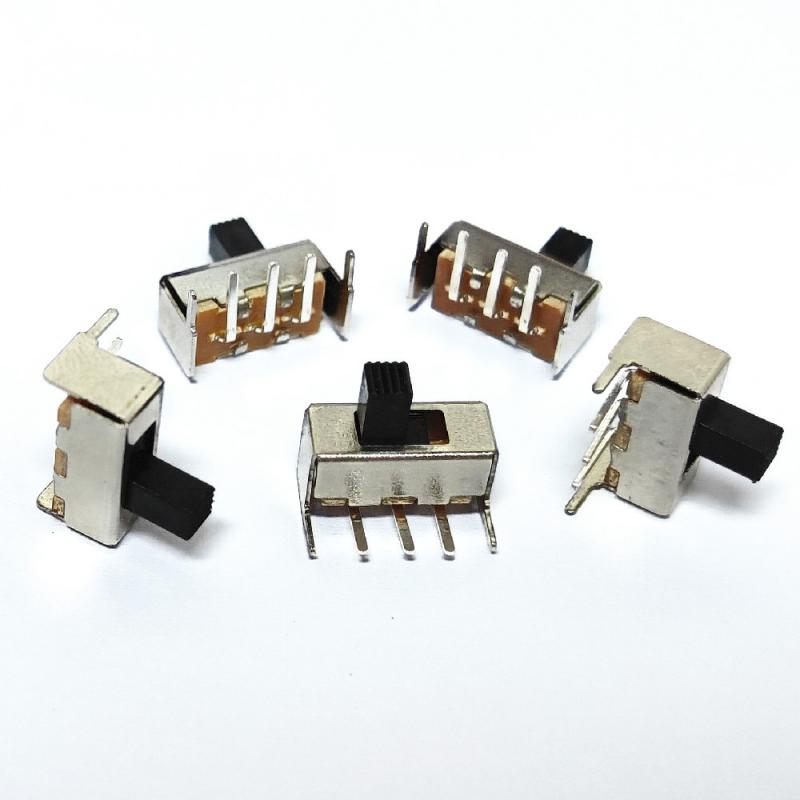

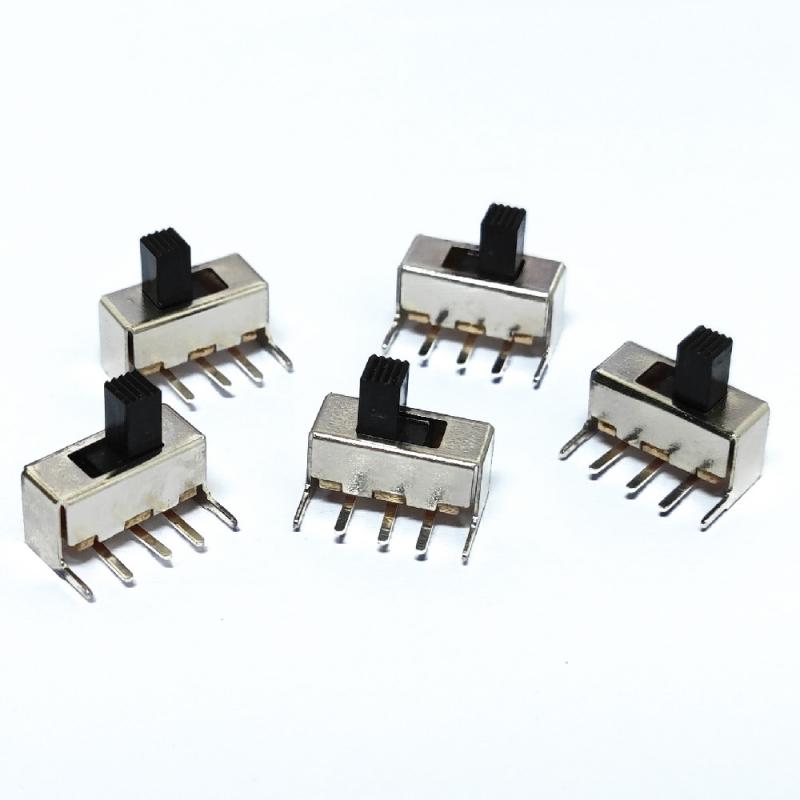

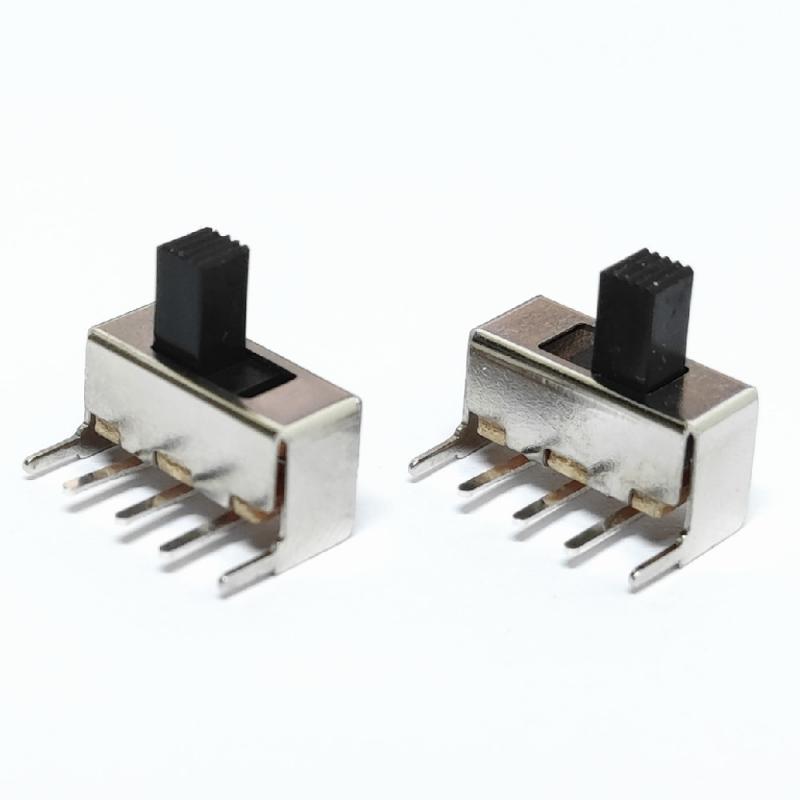

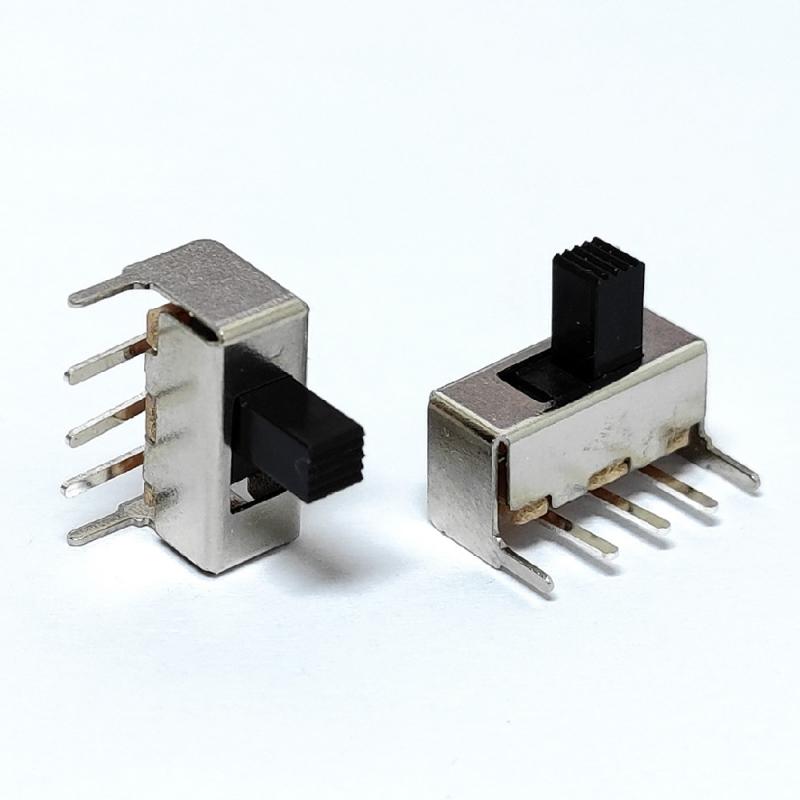

No IP RatingMicro right angle 2 way 5mm height 2 position slide switch
Non-shorting Momentary slide switch wholesaler
Parameter

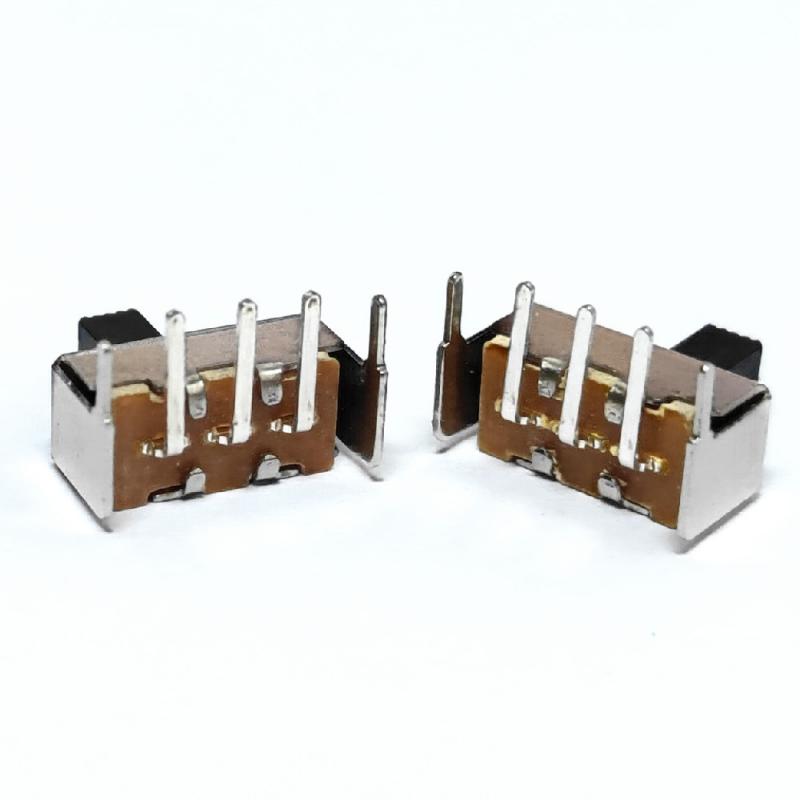

3 pin slide switch pinout
CONTACT RESISTANCE: 30mΩ MAX
INSULATION RESISTANCE: 100MΩ MIN
OPERATING FORCE: 300gf±100gf
LIFE: 8000 CYCLES
PRACTICAL TEMPERATURE RANGE: -16℃- +60℃
RATING: DC50V, 0.5A

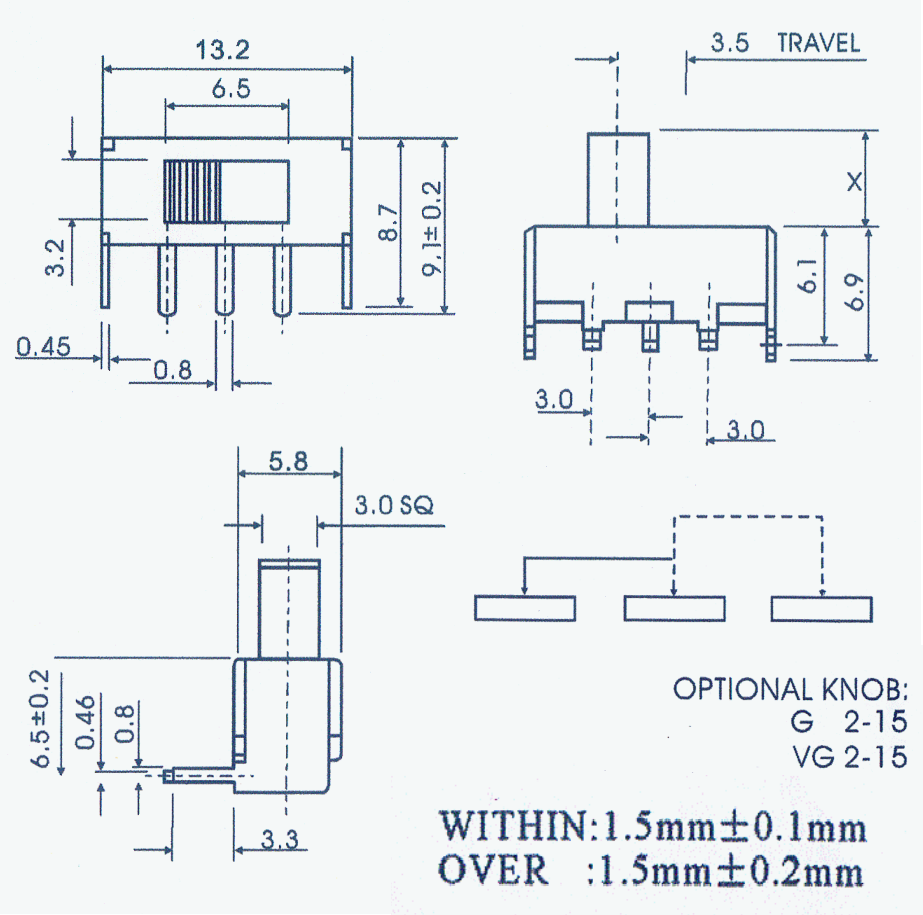

Drawing
Structures of slide switch
1. Iron shell (Material: generally iron; Treatment process: Treated by electroplating nickel or black pot to prevent it from oxidizing)
2. Plastic handle (Material: generally POM material, if there is a fire retardant, flame retardant and high temperature resistance requirement, PA nylon material is often used. Processing technology: injection molding)
3. Terminal (Material: Phosphor bronze in general; Process: Electroplating silver)
4. Insulation bottom plate (Material: Bakelite; Process: Stamping)
5. Contact chip (material: generally phosphor bronze; processing technology: electroplating silver)
6. Round wave beads (material: generally stainless steel; processing technology: electroplating nickel)
7. Slingshot (Material: Bronze; Process: Stamping)
8. Decorative oil (Material: red oil or green oil, a kind of chemical oil, applied to the contact part of the terminal and the bottom plate to play a decorative role. Generally, it is required to be non-toxic and environmentally friendly)
What is a slide switch
A slide switch is a mechanical switch that slides from the open (off) position to the closed (on) position and allows control of a circuit’s current flow without having to manually splice or cut wire.
