Momentary micro switch to be used in push buttons, switches, automatisms and various mechanisms. It is a microswitch that allows the operation NO and NC.
Brand:
GangyuanItem NO.:
G15-06DM01-40-1021Order(MOQ):
500pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
BlackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentOutline (mm)
20.00mm x 10.00mmMounting Type
Right Anglelllumination
Non-llluminatedIP Rating

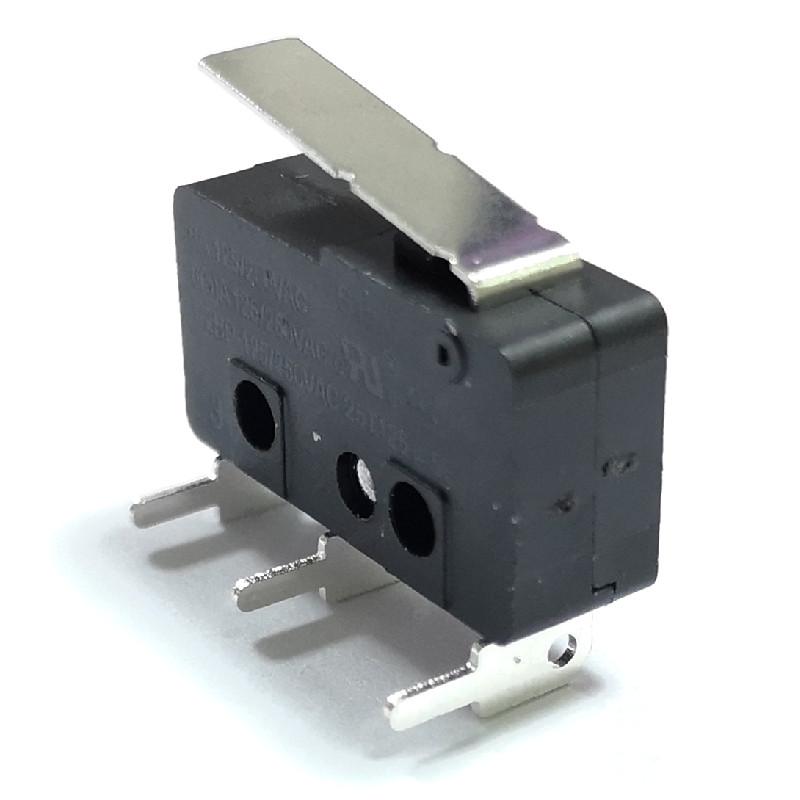

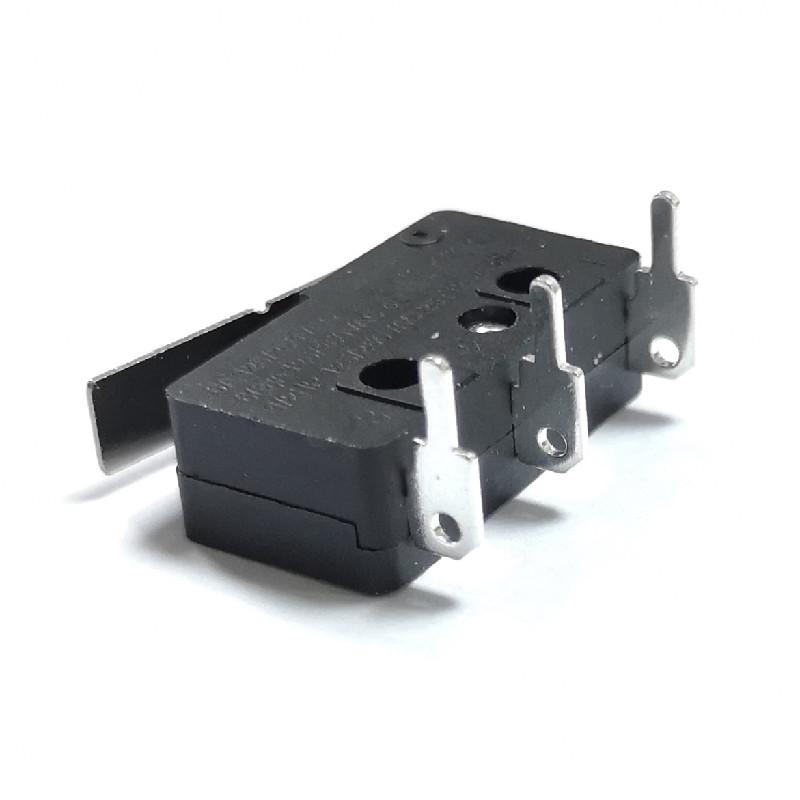

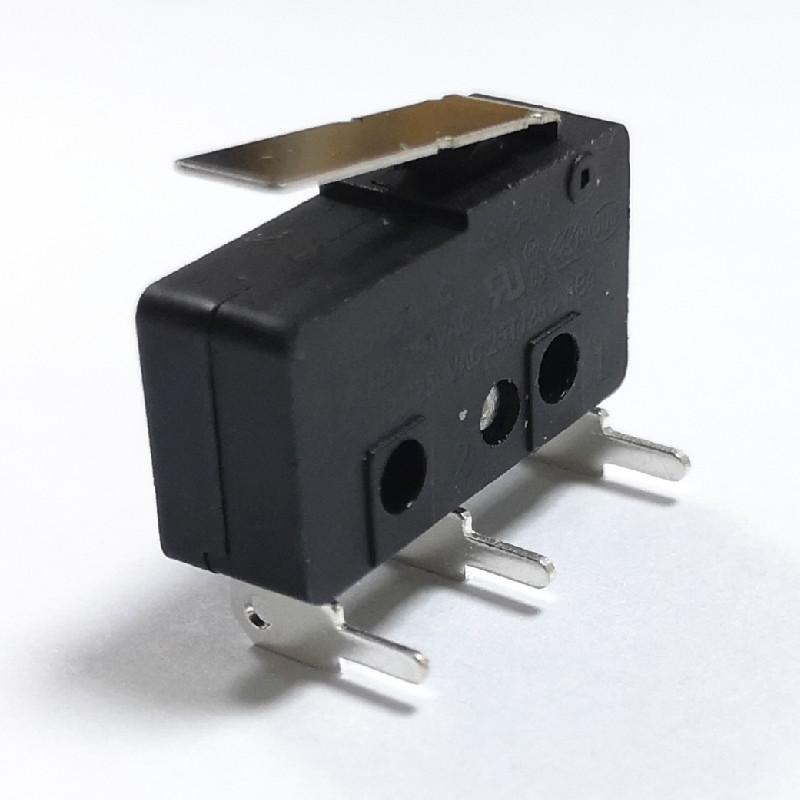

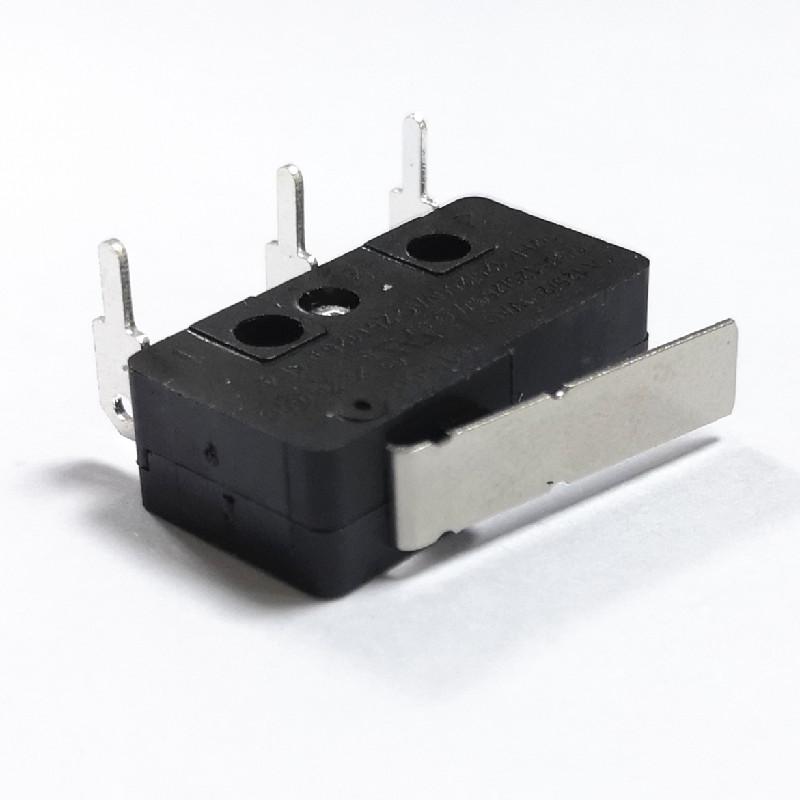

IP4X6a 125/250VAC SPDT terminals momentary micro switch with 16.5mm lever
Micro switch wholesaler
Parameter
Max. Current: 6A
Max. Voltage: 125/250V AC
Contact resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Operating force: 40±20gf
Operating Temperature Range: -25℃~+125℃
Operating Temperature: 260±5℃ 5s
Life: 10000 Cycles

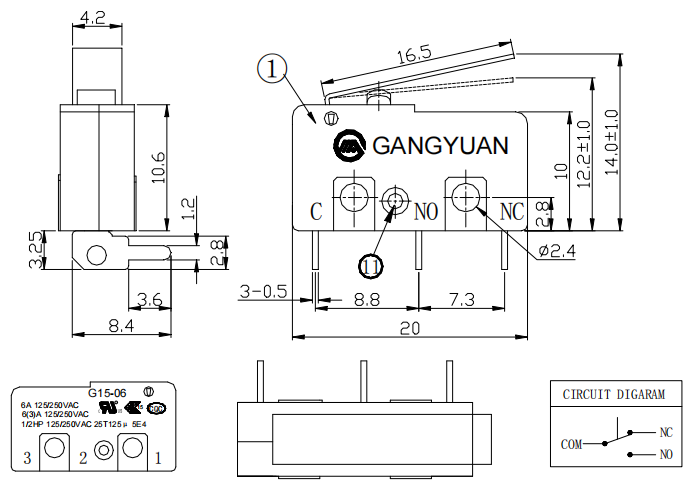

Drawing
Micro Switches are used for many different applications within building, automation and security. Some examples of these applications are;
Push buttons for alarms and call points – micro switches are used as the buttons within fire alarms, emergency stop controls, emergency door releases.

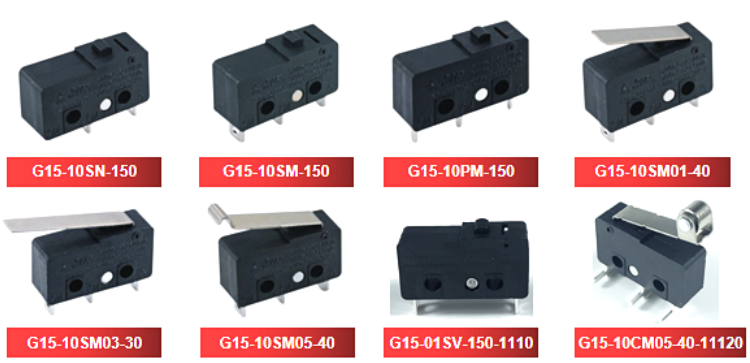

Micro switch type
Certification
Rohs, Reach, ISO14001, ISO9001, CQC, CCC, KC, IATF16949, ENEC, UL, Canon Green Certificate, OHSAS18001 and etc.
Patents
Utility model patents: 55 items;
Software copyright certificate: 18 items;
Invention patents: 4 items;
Appearance design patent: 1 item;
Patent application: 7 items;
FAQ
1. Q: Are you manufacture/factory ? Location ?
A: Yes, three plants located in Shenzhen, Zhejiang, Hubei province.
Tact switch/Micro switch/Slide switch/Push button switch/Socket wholesale supplier
2. Q: Can i get free sample before placing an order ? MOQ ?
A: Yes, free samples will get ready within 3~5 days. About Micro switch, MOQ is 500pcs.
3. Q: Do you test all your goods before delivery ?
A: Yes, we have 100% test before delivery.
IQC incoming inspection → configuration group → IPQC inspection → equipment automatic inspection →
QA warehousing random inspection → OQC shipment inspection
