Home Switch Tactile switch 75 Series tact switch 4 pin smd tact switch gray

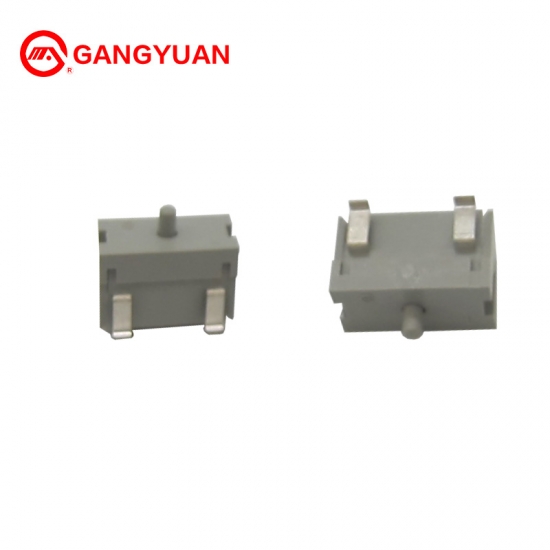

4 pin smd tact switch gray

Nice quality  6*3.5mm micro push button switch 4 pin smd tact switch  gray

  • Brand:

    Gangyuan
  • Item NO.:

    KAN7538-S1
  • Order(MOQ):

    50 pcs
  • Payment:

    T/T
  • Product Origin:

    zhejiang/shenzhen
  • Color:

    gray
  • Shipping Port:

    ningbo or shenzhen
  • Lead Time:

    3 Working Days after payment
  • Product Detail

Nice quality  6*3.5mm micro push button switch 4 pin smd tact switch  gray

Basic Information

Operating temperature  -20°C-70°C
Storage temperature  -30°C-80°C
Operating force 0.25±0.15N
Resistance to low temperature -30±2°C 48h
Resistance to heat temperature 80±2°C 48h
Operting life 100,000 cyclesDiDDmension:

Dimension

tactile switches keyboard.jpg

tact switch .jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
