Wenzhou Gangyuan Electronics Co.,Ltd.
About tact switch, preservation under high temperature and high high humidity or corrosive gas should be avoided Especially . When you need to preserve for a long period ,do not open the carton.
Brand:
GangyuanItem NO.:
KAN4562-0501AOrder(MOQ):
1000Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentOutline (mm)
4.50mm x 4.50mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating
IP4Xswitch mod wholesale 12 volt push button tact switches
The conventional height of this micro tact switch has 4 kinds: 3.8/5/6/7mm. Also can wholesale custom buttons.
Tactile switch datasheet
Type: mini tact switch
Button height: 3.8 / 5 / 6 / 7mm
Operating force: 100/130/160/260gf
Rating: 12VDC,50mA ( effective value )
Contact resistance:≤100mΩ
Insulation resistance: ≥100MΩ
Life: 60000/50000/40000 cycles
Soldering temperature: 350℃ Max.

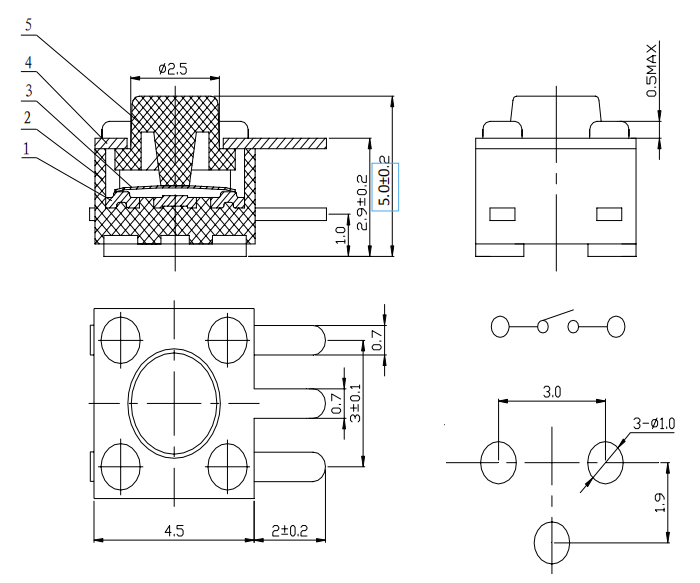

Dimension
what is a tactile switch ?
Tactile Switch working. These small sized switches are placed on PCBs and are used to close an electrical circuit when the button is pressed by a person. When the button is pressed, the switches turn ON and when the button is released, the switches turn OFF.
Application
FAQ
1. Q: Are you manufacture/ factory? Location?
A: Yes, switch manufacturer. three palnts located in Shenzhen , Zhejiang, Hubei province.
2. Q: Can I get free sample before placing an order ? MOQ?
A: Yes, free samples will get ready within 3~5 days. About tact switch, MOQ is 1,000pcs.
3. Q: What about the delivery time?
A: Stable delivery. 7-15 working days.
4. Q: What about terms of payment ?
A: T/T, L/C, Paypal, Cash etc.
5. Q: Can you customize products according to the design drawing?
A: We have independent R&D center in Shezhen, ODM/OME project is welcome.
6.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
This kind of waterproof switch with 4 pins often used in white electricity.
KAN4511: 4.5*4.5mm, height=3.8/ 5 / 6 / 7 / mm, micro mini tact switch.
KAN4541: SMD type, 4 pins electronic mini tact switch.
Tactile switch use for Audio and video products, Router, set-top boxes, communications products, white home appliances, black home appliances, small household appliances, security products: toys, office equipment, etc.
1.5mm-Height Low Profile SMD Momentary Switch Push Button with CQC
rubber tactile mini smd dust proof 3x4 tact switch side push tact switch
4.5mm 12Volt 4 Pins Surface Type Mounting Tactile Switch Push Button
12vdc 4 Bend Pins 6.8*6.8mm Tactlie Switch With LED
