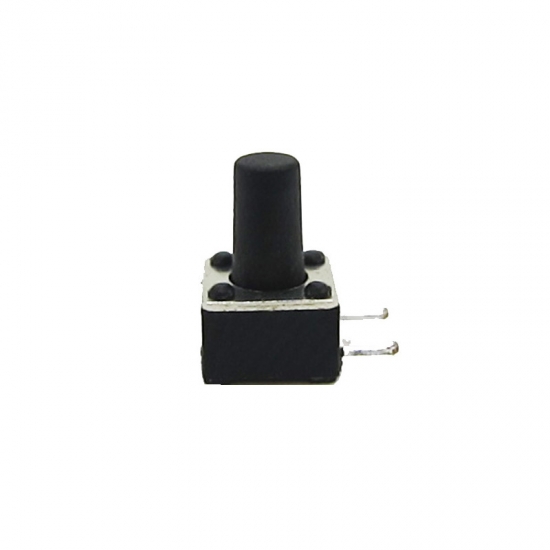

Low profit IP67 tact switch 12v 4.5mm push button tact switch
Brand:
GangyuanItem NO.:
KAN4561Order(MOQ):
10pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
3 working days for paymentOutline (mm)
4.50mm x 4.50mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating
IP4X
Low profit IP67 tact switch 12v 4.5mm push button tact switch
Basic Information
|
Model No.: |
KAN4561 |
|
Dimension: |
4.5*4.5mm |
|
Life cycles: |
40,000 cycles |
|
DC rating: |
12V DC, 50mA |
|
Insulation resistance: |
100MΩ min |
|
Contact resistance: |
50mΩ max. |
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
This kind of waterproof switch with 4 pins often used in white electricity.
KAN4511: 4.5*4.5mm, height=3.8/ 5 / 6 / 7 / mm, micro mini tact switch.
KAN4541: SMD type, 4 pins electronic mini tact switch.
Tactile switch use for Audio and video products, Router, set-top boxes, communications products, white home appliances, black home appliances, small household appliances, security products: toys, office equipment, etc.
