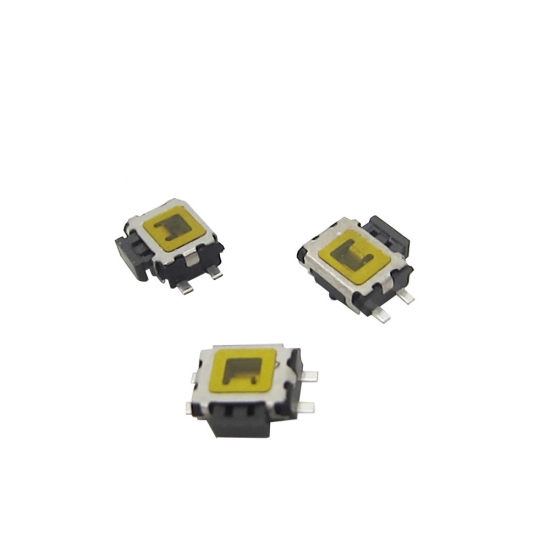

3x6 tact switch

small switch 3x6 4 pin touch sensitive smd tact switch 12v push button

Brand:
Gangyuan
Item NO.:
KAN0445
Order(MOQ):
10pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
black and yellow
Shipping Port:
Ningbo/Shenzhen
Lead Time：
14 working days for payment

Outline (mm)
4.80mm x 3.70mm
Mounting Type
Surface Mount
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

small switch 3x6 4 pin touch sensitive smd tact switch 12v push button

Basic Information

Contact Rating	Ratings: DC 12V 50mA(Max) DC 1V 10μA (Min)
Contact Resistance	≤100mΩ
Insulation Resistance	≥100MΩ
Operating Force	200gf±50gf
Operation life	50,000 cycles
Heat resistance	80±2℃, 96h
Sulfuration resistance	40±2℃, 72h
Free samples range	30~50pcs

Dimension

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact s

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
