A slide switch is a mechanical device that is commonly used for controlling an electrical circuit. It utilizes a simple sliding action to move the switch from an open position to a closed one, or vice-versa. As maintained-contact switches, slide switches remain in one state until manually actuated into another state.
Brand:
GangyuanItem NO.:
SK13D01-VG4-DD1Order(MOQ):
1000Payment:
100% before productionProduct Origin:
WenzhouColor:
BlackShipping Port:
Ningbo or ShenzhenLead Time：
7-15 working daysOutline (mm)
12.70mm x 4.70mmMounting Type
Right Anglelllumination
Non-llluminatedIP Rating

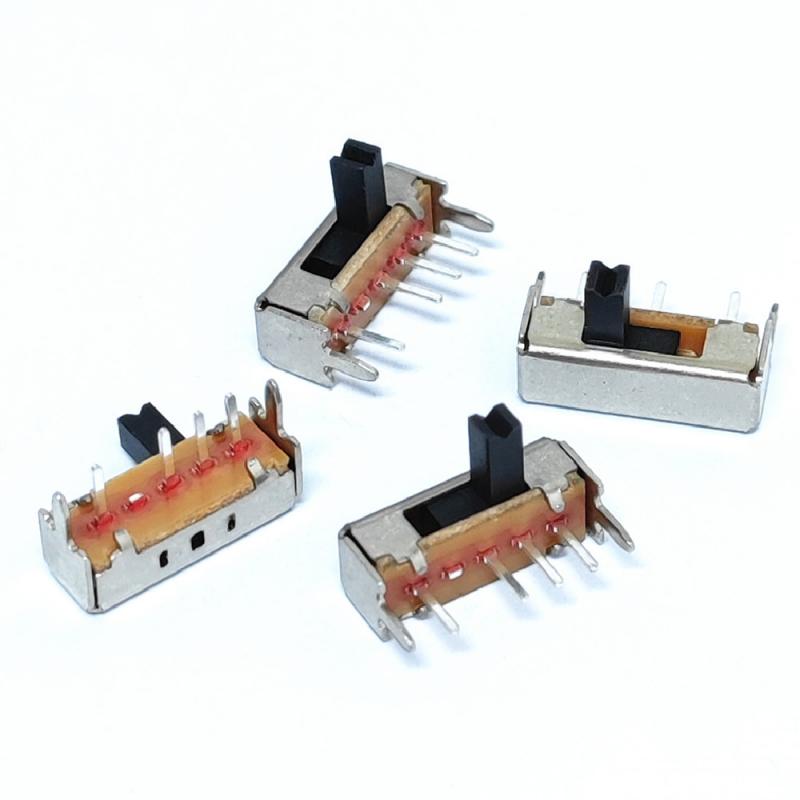

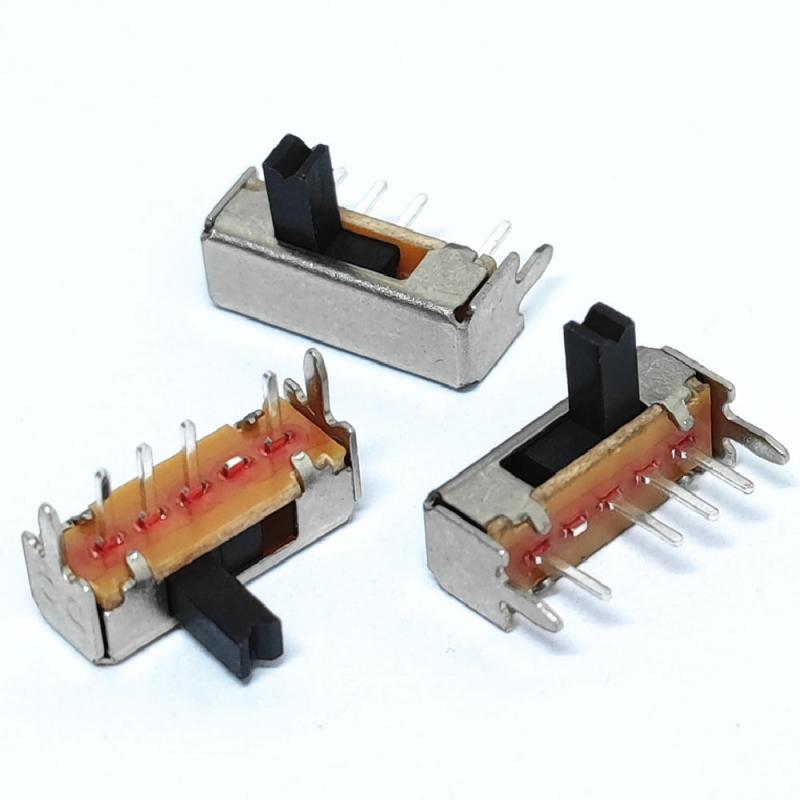

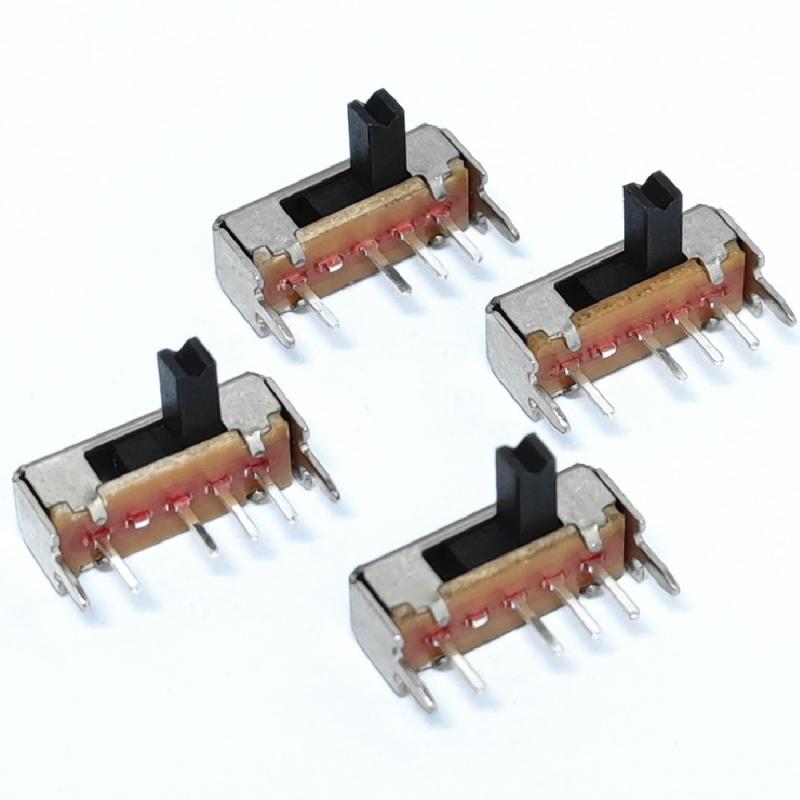

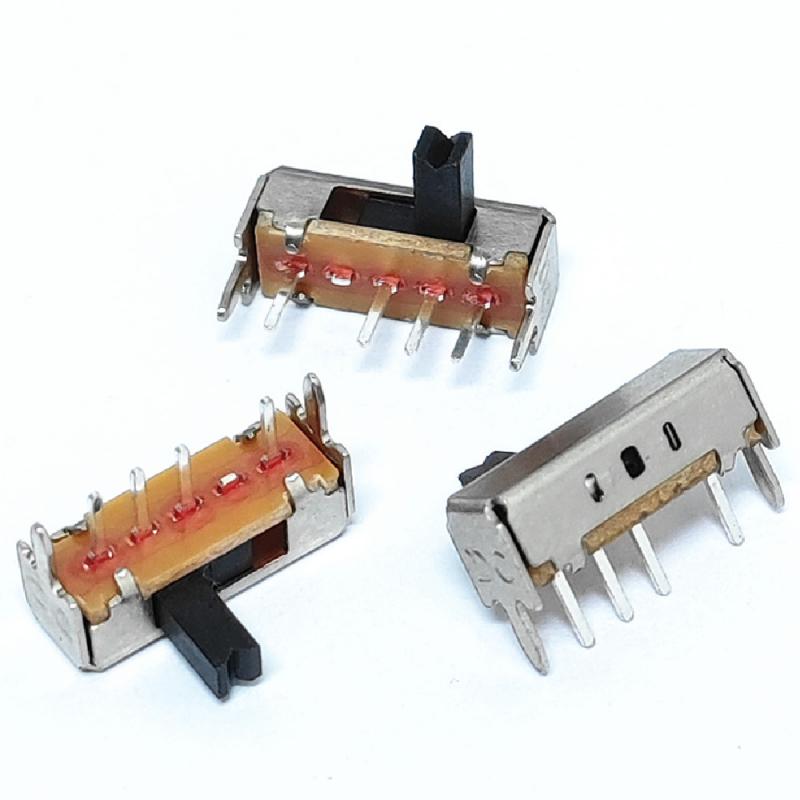

No IP RatingDC 50V 0.3A SP3T through hole right angle slide switch
High temperature resistance
Specifications
Operating Force: 250±100gf
Full Travel: 4±0.2mm
Operating Temperature Range: -20℃～70℃

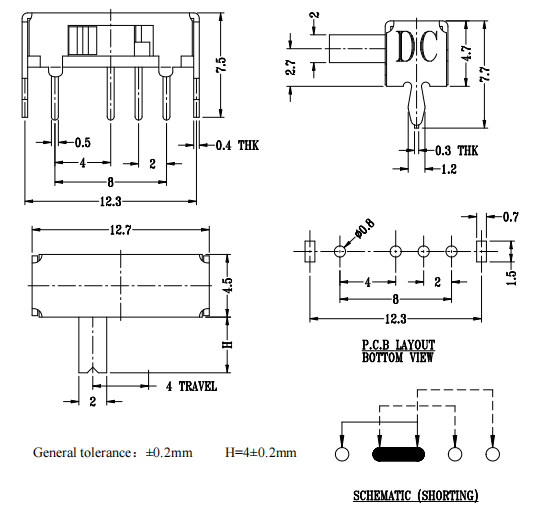

Slide switch schematic
Scope of application
1. Audio and video products: MP3, MP4 audio;
2. Digital products: digital cameras, digital camcorders, etc.
3. Communication products: mobile phone, car phone, telephone, building equipment, PDA, etc.
4. Security products: video walkie-talkies, monitors, etc.;
5. Toys: electronic toys, etc.
6. Computer products: camera, etc.;
7. Fitness equipment: electronic body fat scale, treadmill, etc.;
8. Medical equipment: blood pressure monitor, thermometer, hospital call system, etc.
Features
Commonly used varieties of Slide switches include unipolar two-position, unipolar three-position, bipolar two-position,
and bipolar three-position. They are generally used in low-voltage circuits and have the characteristics of flexible slide
action and stable and reliable performance.
