2 position slide switch

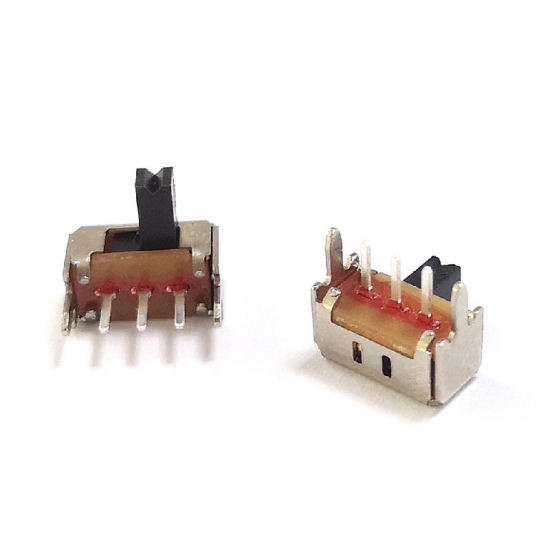

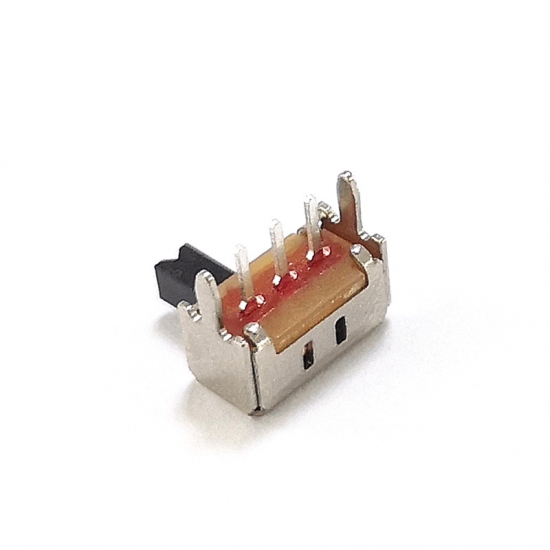

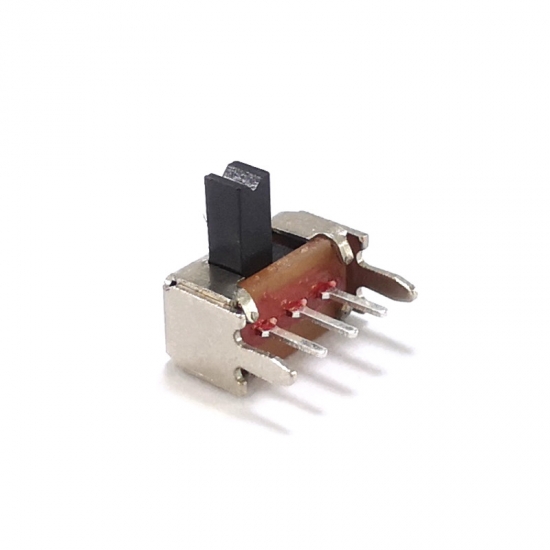

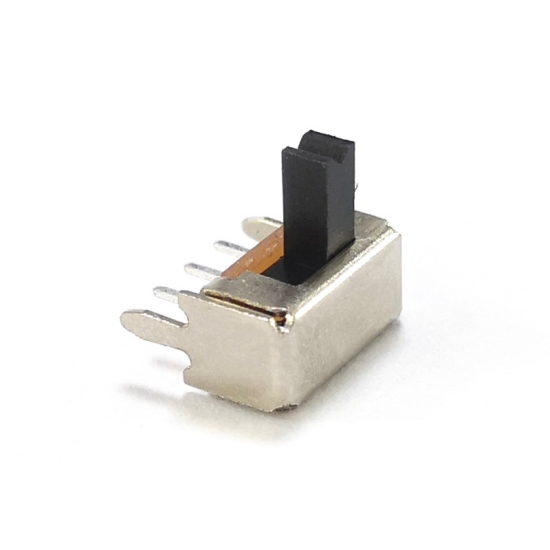

1p2t 2 position right angle defond slide switch

 Sldie switch datasheet

Type: Side mount slide switches

Button height: 4mm

( Can be customized according to customer requirements）

Operating force: 300±100gf

Rating: DC 50V 0.3A（Max）

Contact resistance:≤100mΩ

Insulation resistance: ≥100MΩ

Life: 10000 cycles

Timng: Non-shorting

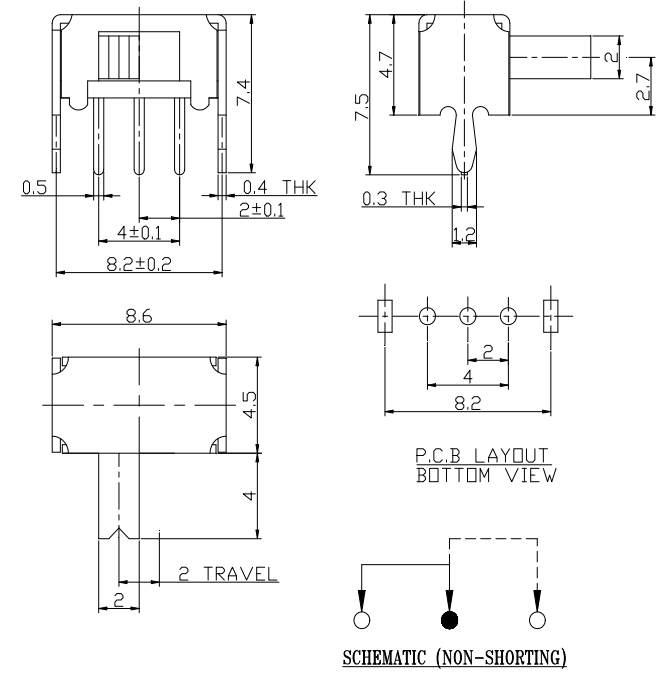

 Dimension

 How does slide switch work ?

Slide switches are mechanical switches using a slider that moves (slides) from the open (off) position to the closed (on) position.

They allow control over current flow in a circuit without having to manually cut or splice wire. This type of switch is best used for controlling current flow in small projects.

 Application

Computers, peripherals and network devices (laptops, network hubs, routers, gaming controllers)

Telecommunications equipment (telephone and cable modems, audio-visual devices, microphones)

Consumer electronics (handheld games, remote controls, headphones, headsets, earbuds, channel selector on set-top boxes)

Test and measurement equipment

Appliances (small and large, both indoor and outdoor)

Small equipment (handheld devices, portable tools, office equipment)

Automotive and medical applications

Thermostat select switch

Lighting devices

  FAQ

1. Q: Are you manufacture/ factory? Location?

    A: Yes, switch FACTORY. three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

    A: Yes, free samples will get ready within 3~5 days. About tact switch, MOQ is 1,000pcs.

3. Q: What about the delivery time?
    A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

    A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?
    A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

   A: Yes, we have 100% test before delivery.
