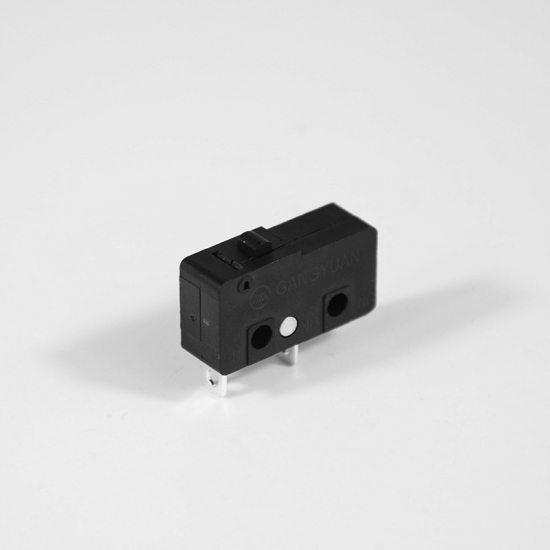

2 Pin Micro switch 5a 125/250vac Push button micro switch t125 5e4 for home appliance
Brand:
GangyuanItem NO.:
G15-10SN-150-23Order(MOQ):
50 pcsPayment:
T/TProduct Origin:
zhejiang/shenzhenColor:
blackShipping Port:
ningbo or shenzhenLead Time：
3 Working Days after paymentOutline (mm)
20.00mm x 10.00mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
IP4X
2 Pin Micro switch 5a 125/250vac Push button micro switch t125 5e4 for home appliance
Basic Information
| Number | G15-10SN-150-23 |
| Voltage Rating | 125/250V AC |
| Current Rating | 10A |
| Contact Resistance | ≤100mΩ |
| Insulation Resistance | ≥100MΩ |
| Operating Force | 1.5±0.5N |
| Operating Temperature Range | ~25℃~+125℃ |
| Operating Relative Humidity | ≤85% |
| Operation life | 10000 cycles |
| Feature |
SPST-NO |
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
Sub-miniature in size, the G15 Series snap-action switch is UL certified.
micro switch manufacturers of china，surface mount micro switch
G15-06SM03-30-15: On Off, T85/125, 6A 125v Electronic Micro Switch.
G15-06: 3 Position, 6A, 125/250VAC, SPDT type mini micro switch.
G15-10SM04: 10A 125/250v AC, T125 5e4, on off micro switch.
G15-10SM08: 10A 250V, high level, 10,000cycles mini micro switch.
Micro switch is widely used in mouse, security products, door bells, car electronics, telecommunications, military products, Testing equipment, Household appliances, medical equipment, BAS, electric tools, radio equipment, etc.
GANGYUAN 5e4, 25t125, 3 Pin Light Weight Micro Switch with lever
