2 Pin 3*4mm Micro Push Button Tact Switch

Tactile Switch SPST-NO Top Actuated Surface Mount

Brand:
Gangyuan
Item NO.:
KAN0444-0201B1-29
Order(MOQ):
2500
Payment:
100% before production
Product Origin:
Wenzhou
Color:
Black
Shipping Port:
Ningbo or Shenzhen
Lead Time：
7-15 working days

Outline (mm)
4.00mm x 2.90mm
Mounting Type
Surface Mount
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

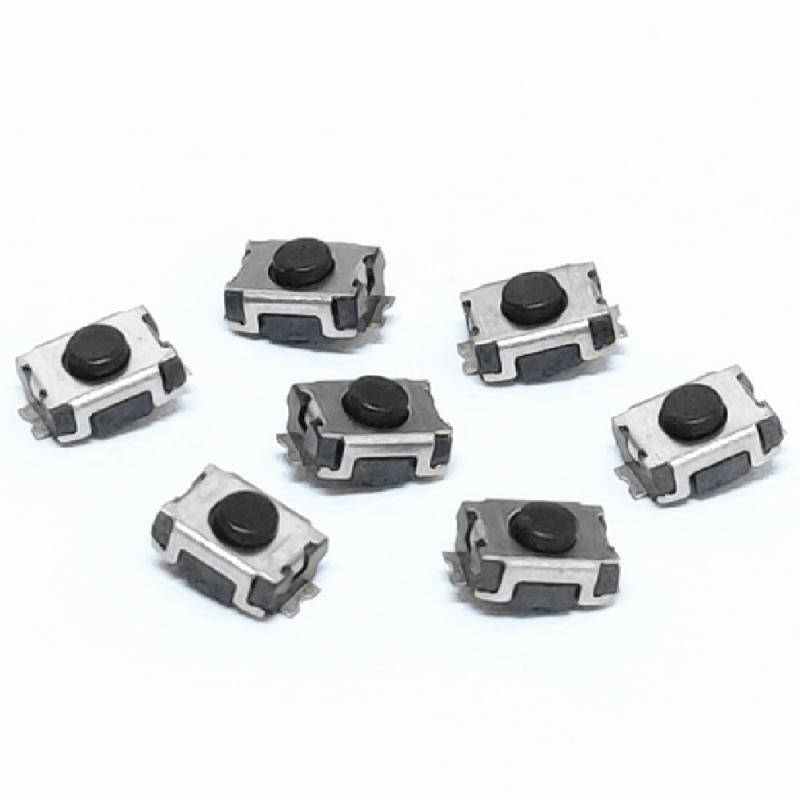

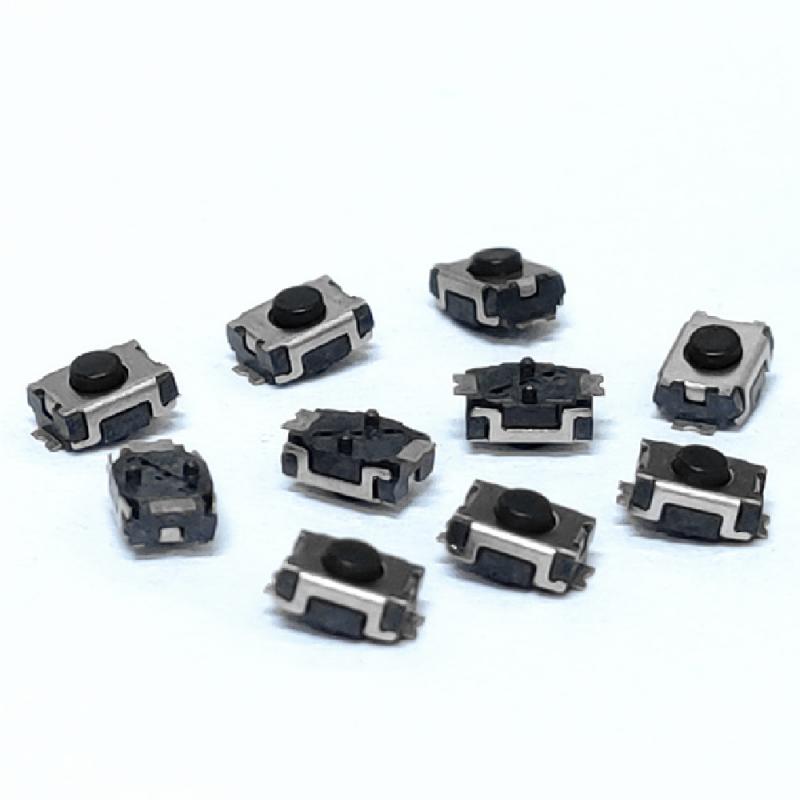

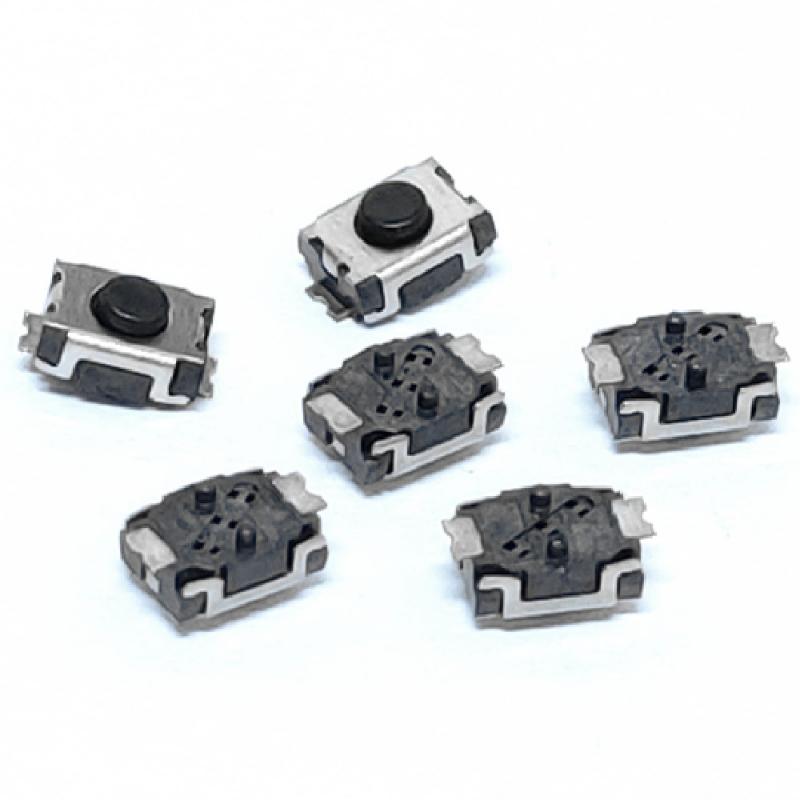

Touch Switch 2 Pin SMD Ultra Smart Tactile Switch With Boss

Typical Specifications

Type: Small Mini Micro Tact Switch

Ratings: DC 12V 50mA（Max）DC 1V 10μA （Min）

Operating Force: 160±50gf

Full Travel: 0.20±0.1mm

Operation life: 50,000 cycles

Product height: 2±0.2mm

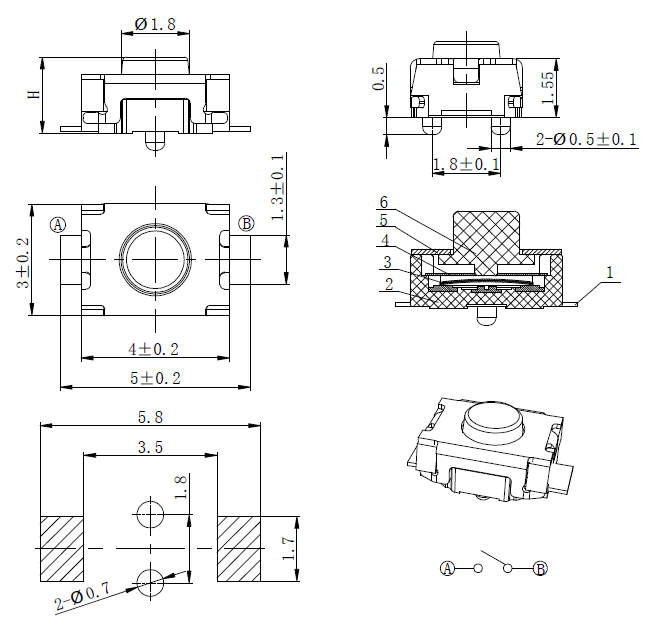

Tact switch dimensions

Match SKRKAHE020 Tact Switch

2mm Tact Switch Knob

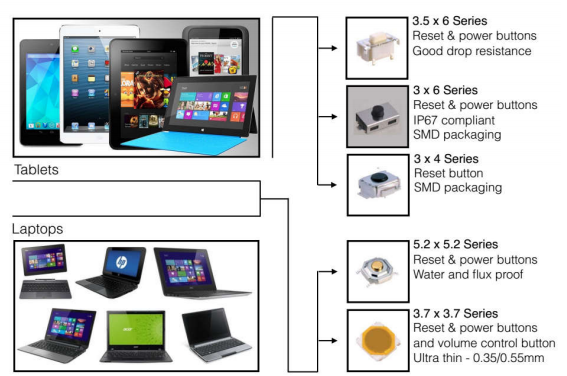

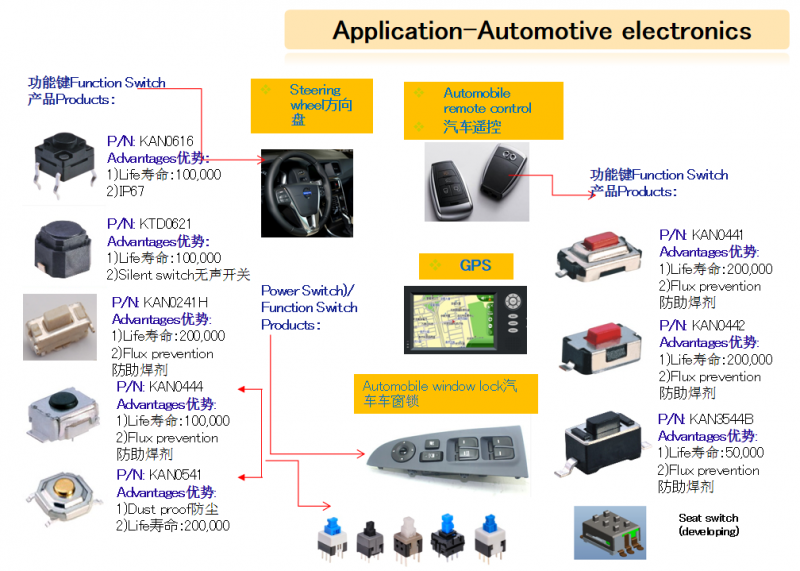

Application

Momentary tactile tact push button switch

Core Features

Ultra-small design
1) Size: 3.0mm (Length) × 4.0mm (Width) × 2.0mm (Height), suitable for high-density PCB layout.

2) Low profile (2mm height), space-saving, commonly used in portable devices.

High reliability

3) Contact material: SUS, low contact resistance.

4) Operating force: conventional 160±50gf (other forces can be selected, such as 100gf or 260gf).

5) Mechanical life: 50,000 cycles.

Strong compatibility

6) Patch welding (SMT process), suitable for reflow soldering (high temperature resistant 260℃).

7) Operating temperature range: -30℃~+80℃.

8) Key feel: no lock, paragraph feel.
