Home Switch Rocker switch 16a 250vac t125 55 round 2 Pins Rocker Switch

16a 250vac t125 55 round 2 Pins Rocker Switch

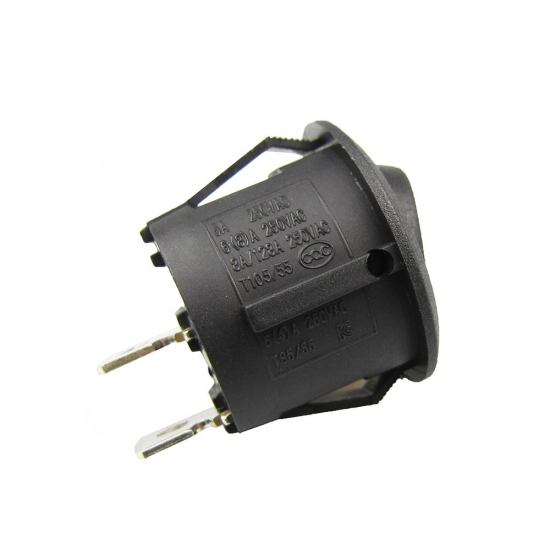

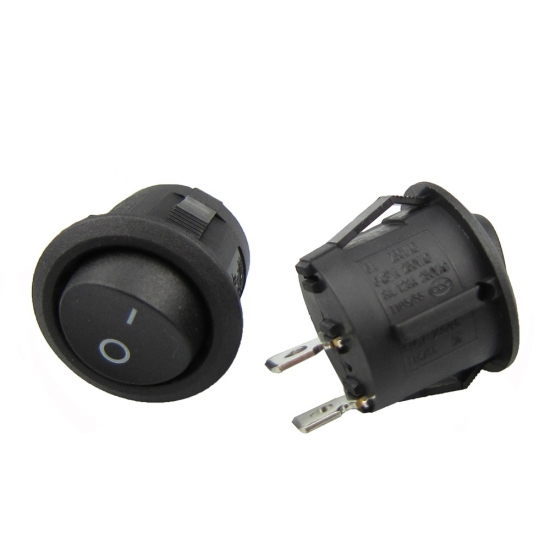

RS601C1: Diameter=23mm, 2 Pins, round rocker switch.

  • Brand:

    Gangyuan
  • Item NO.:

    RS 601C1
  • Order(MOQ):

    1000
  • Payment:

    T/T, Paypal full payment before produce
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Ningbo/ Shenzhen
  • Lead Time:

    5-7 working days
  • Product Detail

16a 250vac t125 55 round 2 Pins Rocker Switch


Basic Information

P/N
RS601C1
Dimension
 Diameter=23mm
Rating current
6A 250VAC/ 10A 125VAC
Life cycles
10,000 Cycles
Certifications CE、CQC、ROHS、VDE

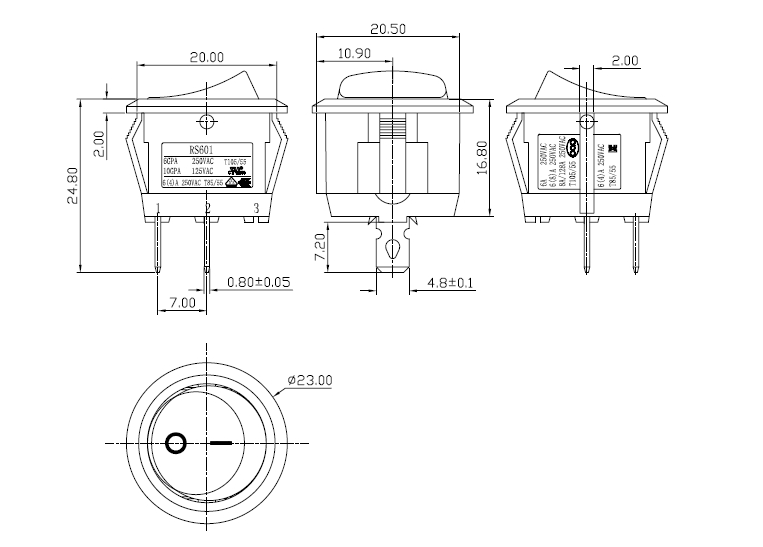

Dimension



Advantage


        Gangyuan electronics offers a wide variety of tactile switches including 6*6mm SMD/DIP , ultra-thin, and low profile tactile switch options. GYE tactile switches are specially sealed to permit automated wave soldering and washing. Logic-level surface-mount and PC board mounting options. Lighted and non-illuminated models and with various heights and operating force are designed to meet virtually any application. Customizable 3D CAD models would be provide if require. UL certifications available. Certificate of RoHS2 Environmental Compliance is provided within each product series.



Application

The rocker switches available in both illuminated and non-illuminated versions, are designed to snap into the panel. Our switches are widely used in the fields of small household products, communication equipment, energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, UPS, medical facilities, socket, etc.
