Wenzhou Gangyuan Electronics Co.,Ltd.
We have an excellent R&D team and welcome customer design requirements.
Self-locking switches are widely used, with high quality and favorable prices.
Brand:
GangyuanItem NO.:
PB22E09071-0406Order(MOQ):
1000Payment:
T/T Before ShipmentProduct Origin:
ChinaColor:
Black and WhiteShipping Port:
Ningbo/ShenzhenLead Time：
14 Working Days For PaymentOutline (mm)
8.50mm x 8.50mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
No IP Rating
Product Description

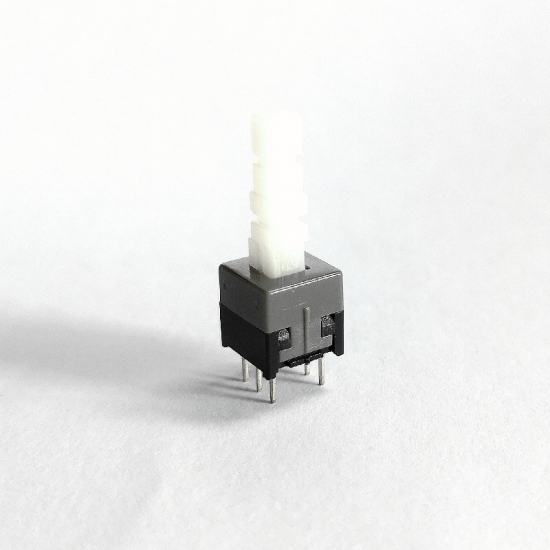

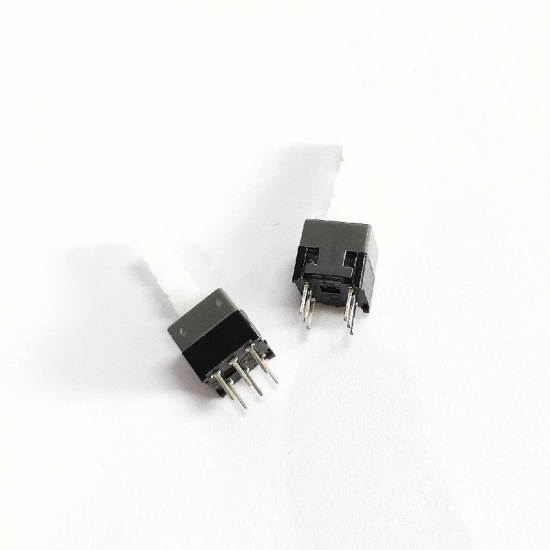

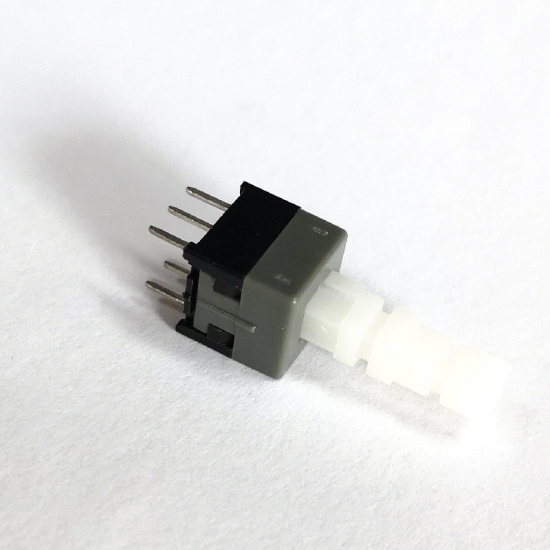

Product name
self locking switch
Model number
PB22E09071-0406
Rating
30VDC, 0.1A
Dimension
8.5*8.5mm
Contact Resistance
≤100MΩ
Insulation Resistan
≥100MΩ
Operating Temperature Range
-5℃~35℃
Storage Temperature Range
-30℃~80℃
Full travel
2.5±0.2mm
Operation life
5000 cycles

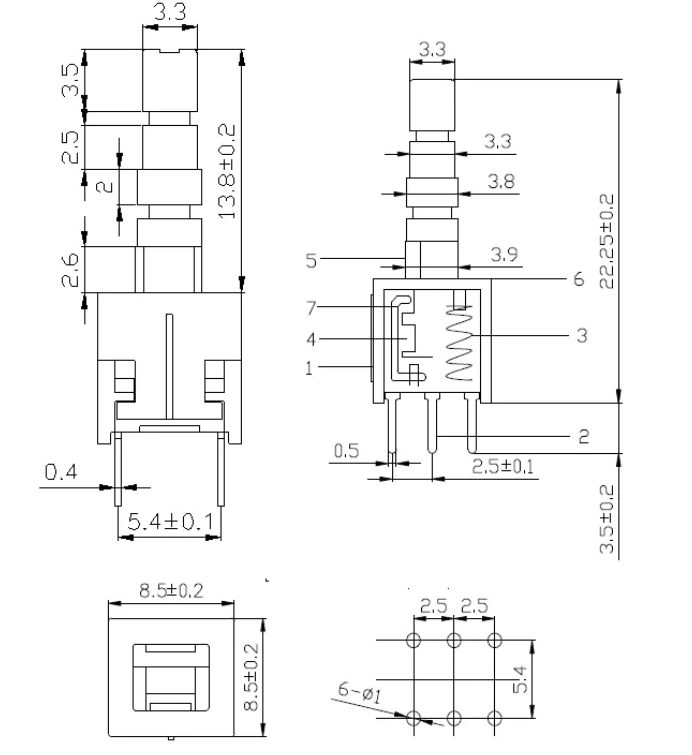

Switch Dimension
Application
Self-lock momentary Push Button switch auto switches, used for audio and video products, Clocks and watches, Communication products, Security products Electronic toys, Building communication, Personal care products, Medical equipment, Small home appliances Industries.
FAQ
1. Q: Are you manufacture/ factory? Location?
A: Yes, Three palnts located in Shenzhen , Zhejiang, Hubei province.
2. Q: Can I get free sample before placing an order ? MOQ?
A: Yes, free samples will get ready within 3~5 days.
3. Q: Can you customize products according to the design drawing?
A: We have independent R&D center in Shezhen, ODM/OME project is welcome.
4. Q: Do you test all your goods before delivery?
A:Yes, we have 100% test before delivery.
Previous:
Surface Mount Type Push SwitchNext:
7mm Latching Auto Lock and Non Lock Momentary Push Button SwitchIf you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
