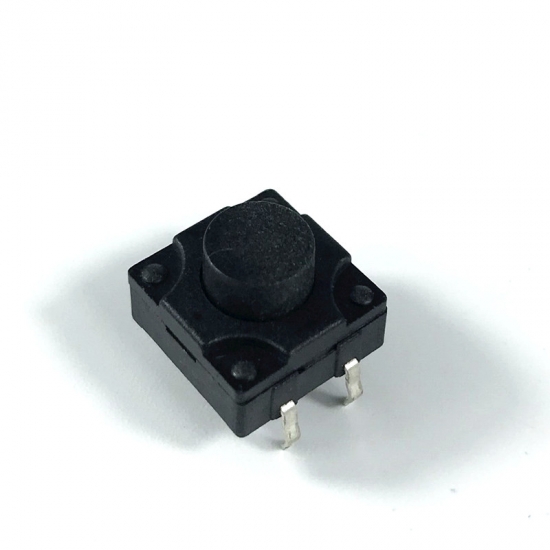

12x12 waterproof tact switch 4 pin 100 tactile button dip tact switch
Brand:
GangyuanItem NO.:
KAN1215-0701C-15Order(MOQ):
10pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
14 working days for paymentOutline (mm)
12.00mm x 12.00mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
IP6712x12 waterproof tact switch 4 pin 100 tactile button dip tact switch
Basic Information
| Product name | Tact Switch |
| Operation force | 2.5±0.3N |
| Insulation Resistance | ≥100MΩ |
| Contact resistance | ≤50mΩ |
| Operation life | 80,000 cycles |
| Dimension | 12x12mm |
| Max. Voltage | 12VDC |
| Max. Current | 50mA |
| Waterproof Grade |
IP67 |
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact s
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
