Tactile Switches for Mobile Phone

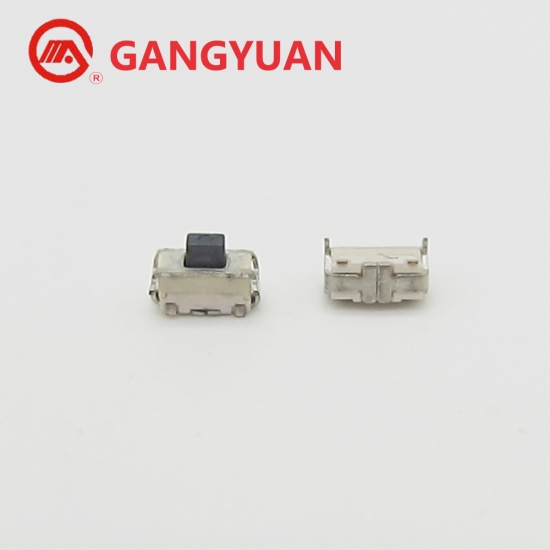

2*4mm Miniature Tactile Switches for Mobile Phone with 200000 Cycles

Brand:
Gangyuan
Item NO.:
KAN1542
Order(MOQ):
50 pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
black and white
Shipping Port:
Ningbo/Shenzhen
Lead Time：
3 Working Days after payment

Outline (mm)
3.90mm x 1.55mm
Mounting Type
Surface Mount
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

2*4mm Miniature Tactile Switches for Mobile Phone with 200000 Cycles

Basic Information

Product name	Waterproof Tactile Switch
Operation force	1.6N
Full travel	0.25±0.1mm
Return force	0.4N MIN
low resistance	-30±2℃,96h
Heat resistance	80±2℃,96h
Sulfuration resistance	72h,40±2℃
Salt Mist	8h±1h,35℃±2℃
Operation life	200,000 cycles

Dimension

tactile switch.jpg

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact switches

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
