Private mold detctor switch from Gangyuan detector switch manufacturer

June 01, 2017

Gangyuan is one of the world's most trusted high-quality electronic switch brands, Gangyuan Micro-Key announced the launch of a new private-mode ultra-small detection switch. This product is extremely small, and for product designers, if they need an ultra-thin switch that saves space on the board, this new switch will be their first choice, it is a cost-saving solution. It also has a long run cycle life under or over load.

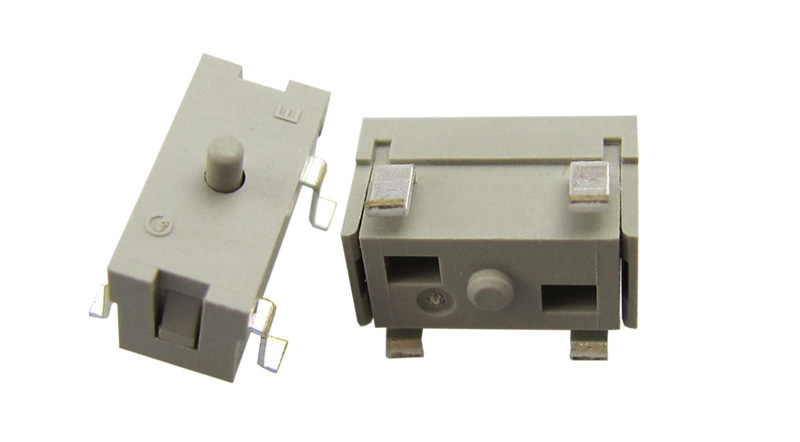

Product model:	KAN7538-D1
Product Name:	smd detector switches
Product specifications:	3.8×7.5×6MM
Operational force:	0.25N
Product life:	100,000 times
Full Travel:	0.15+-0.1mm
Working temperature:	-20 ° Cto + 70 ° C
Rated current:	50mA.12V DC
Insulation resistance:	100MΩ min.100V DC
Dielectric strength:	250V AC for 1 min
Contact resistance:	100m Ω max.
Applications:	Automotive electronics,FP-TV HD Audio /DVD player,PC and peripheral equipment

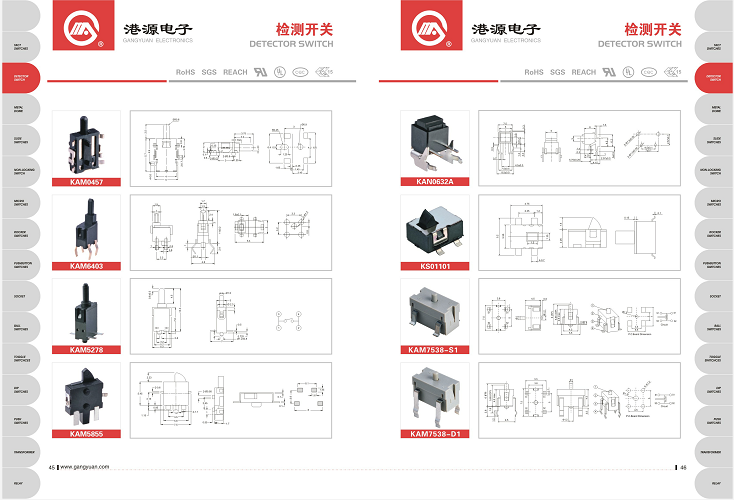

Except this model, Gangyuan also produce other hot selling detector switch series, please refer to the following picture for details:

Wenzhou Gangyuan Electronics Co.,Ltd. is the leader in the switch industry, focus on switches for 24 years, guarantee quality, offer best service and reasonable prices to customer, we are the detector switch manufacturer that you are looking for.
