New momentary tactile switch serie

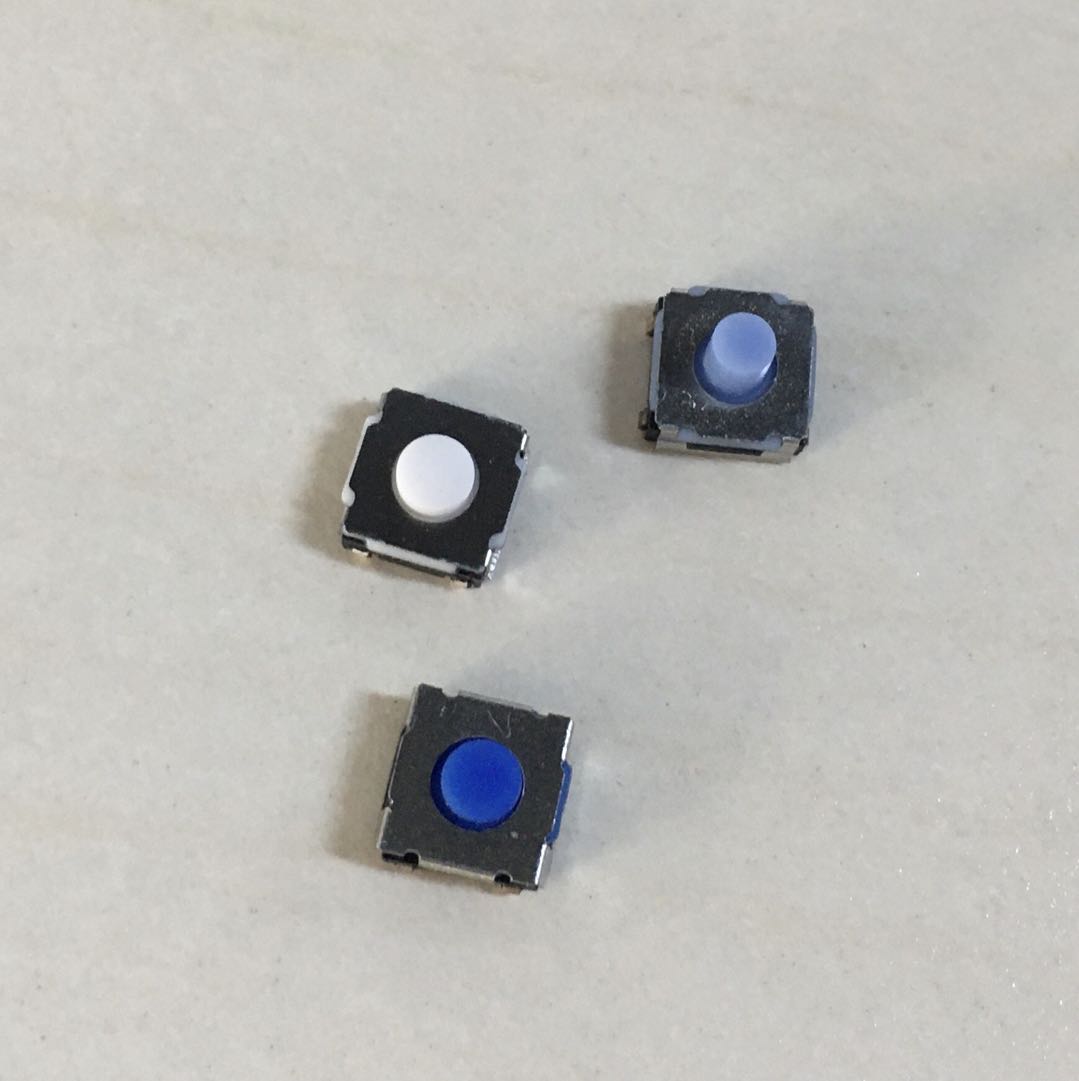

This is our new product KAN6247-03130C1 for tact switches.
What is the general production process of our tactile switches?
The first is the storage of raw materials (copper and plastic), and then the injection molding stage of the base. At this time, there is a testing process for the materials. After the production is finished, it enters the IQC waiting area, and then enters the semi-finished product warehouse. From the warehouse, we can proceed to the next step of assembly after assembly trial production. 80% of our factory is automated assembly. The completed assembly is what you see now, but this is not our last step. In the last step, we An inspection test will also be carried out to ensure that the finished product is of good quality before being sold. The above is the journey of the products you received.
Basic Information
Operating Temperature Range |
-20℃~70℃ |
Contact Resistance |
≤100mΩ |
Insulation Resistance |
≥100MΩ |
Operating Force |
260 ±100 gf |
Full Travel |
0.30±0.10mm |
Return Force |
70 gf Min |
Stem Strength |
20N.min |
Link:https://www.alibaba.com/product-detail/Mini-surface-mount-tact-switch-12v_1600155004800.html?spm=a2747.manage.0.0.644571d2XFGZLY
Chinese switch suppliers welcome you, if you have any needs, please contact us
