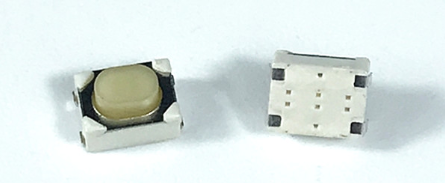

The New KAN3242 Series Ultra-miniature Tact Switch

We are micro switch manufacturer.  The tact switch is surface mount and ultraminiature in size. It is a mere 3.2mm x 4.2mm in size with high life of 100000 cycles. With the small footprint and low profile, and the SMT design, it can be used for many small applications, including car entertainment and personal care. High heat resistance and humidity resistance ensure the safety and stability of the customer's system. It is a custom momentary push button switch.

Specifications for ultraminiature tact switch include:

Electrical Rating: DC 12V 50mA（Max）DC 1V 10μA （Min）
Electrical Life: 100000 Cycles
Contact Resistance: ≤500mΩ
Insulation Resistance: ≥100MΩ
Dielectric Strength: 250VAC for 1 min.
Operating Temperature: -30℃～80℃
Storage Temperature: -40℃～90℃
Operating Force: 1.6N±0.5N ( Can be customized according to requirements )
Travel: 0.20±0.1mm

How does a tactile switch work？

A push button switch is a small, sealed mechanism that completes an electric circuit when you press on it. When it's on, a small metal spring inside makes contact with two wires, allowing electricity to flow. When it's off, the spring retracts, contact is interrupted, and current won't flow.
